To create the Backup archive object, do the following:

  1. Select the required Computer object on the Hardware tab of the System settings dialog window.

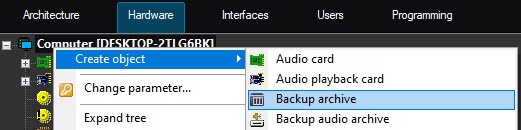

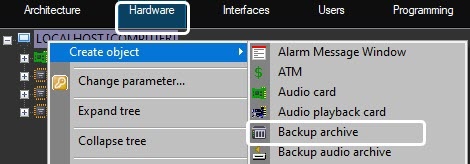

  2. Right-click the selected Computer object and select the Create object -> Backup archive item in the context menu that appears.

  3. In the window that appears, set the number and name of the Backup archive object and then click the Apply button.

    Note

    As a result, the settings panel of the Backup archive object is displayed. Also, the Backup audio archive object is automatically created in the objects tree.
  4. Repeat steps 1-3 for all required Computer and Backup archive objects.

Creating the Backup archive object is complete.
