Creating the Videogate object

To create the Videogate object do the following:

1. Select the required Computer object on the tab Hardware of System settings dialog window.

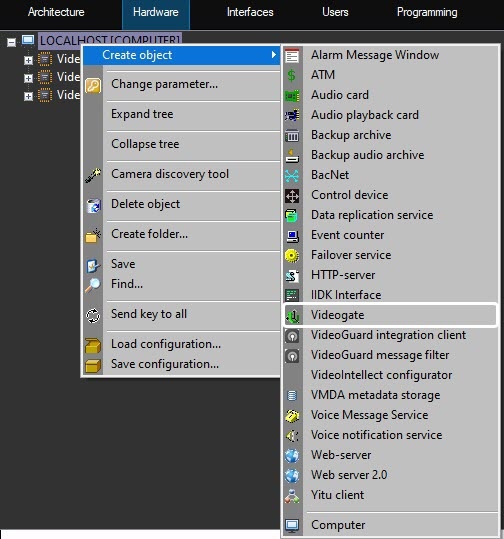

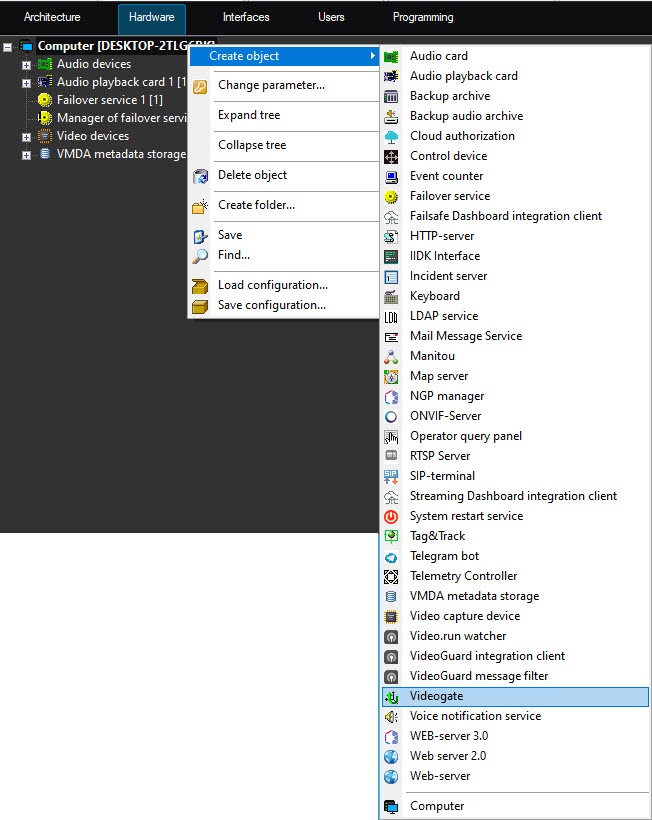

2. Right mouse click upon the selected Computer object and select Create object> Video gate in the context menu that will open.

3. In the window, that will open, set the name and the number of Videogate object and the click Apply button.


   Note

    In result settings panel of Videogate object will open.
4. Repeat steps 1-3 for all the required Computer and Videogate objects.

Creation of the Videogate object is completed.
