To create the Monitor object, do the following:

  1. Select the required Display object on the Interfaces tab of the System settings window.

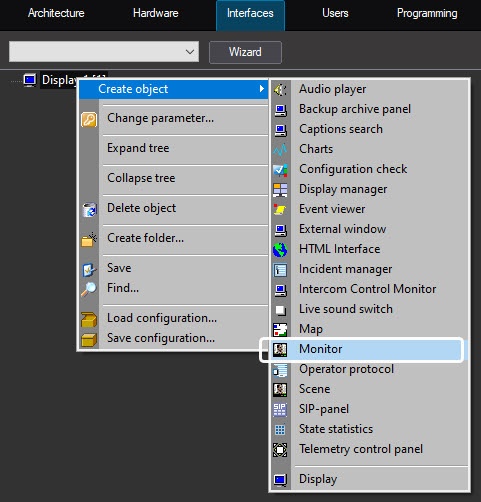

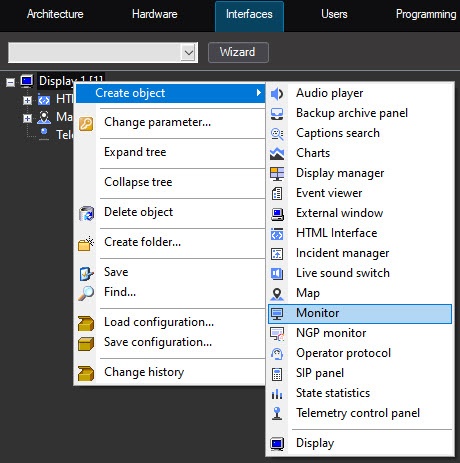

  2. Right-click the selected Display object, and in the context menu that opens, select Create object → Monitor.

  3. In the window that opens, specify the number and name of the Monitor object.

    Attention!

    You must specify the Monitor object number as a positive integer. You cannot specify the number containing a comma, dot, or any other characters. Otherwise the monitor doesn't work.

  4. Click the Apply button. As a result, the settings panel of the Monitor object is displayed.

Creating the Monitor object is complete.
