In Axxon PSIM, you can configure automatic logout if the operator is inactive for a certain period of time.

For this, do the following:

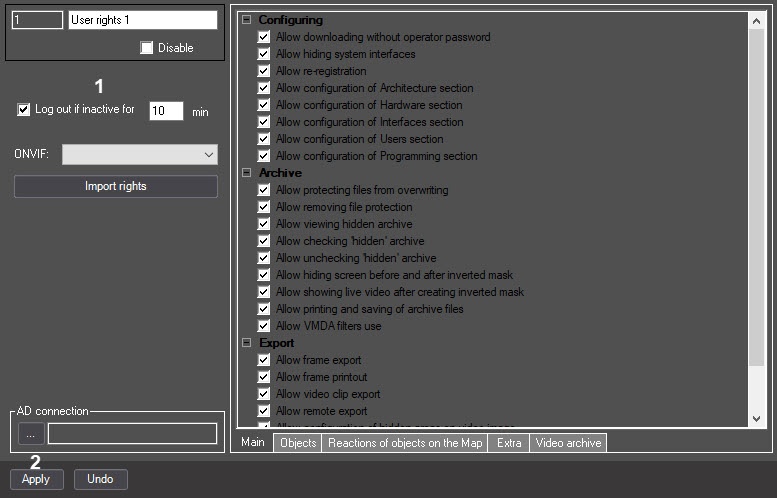

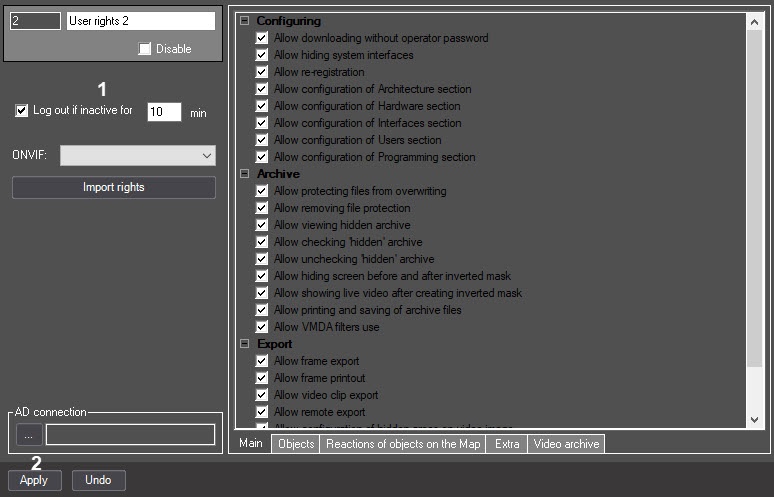

  1. Go to the settings panel of the User rights object.
  2. Set the Log out if inactive for __ min checkbox (1).
  3. In the Log out if inactive for __ min field, enter the time in minutes at the end of which the session is terminated after the last operator action and the login window is displayed (see Axxon PSIM start and shutdown).
  4. Click the Apply button (2).

 Configuring automatic logout if the user is inactive is complete.
