Creating and configuring time schedules

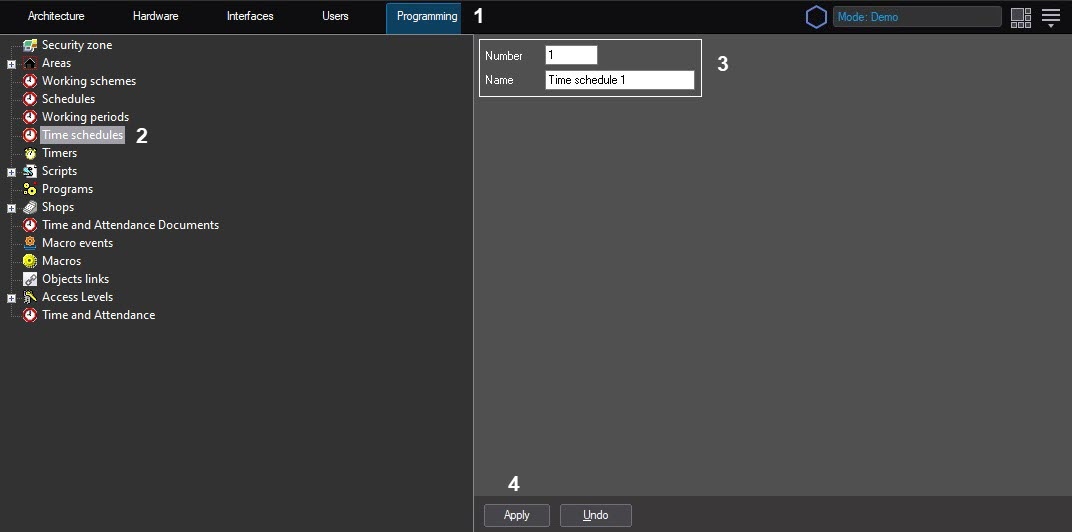

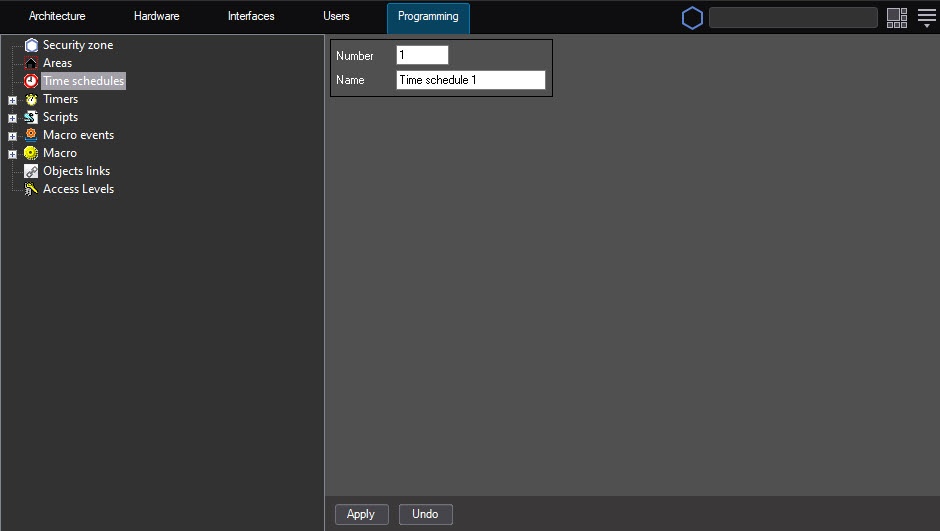

To create the Time schedule object, do the following:

Open the Programming tab.

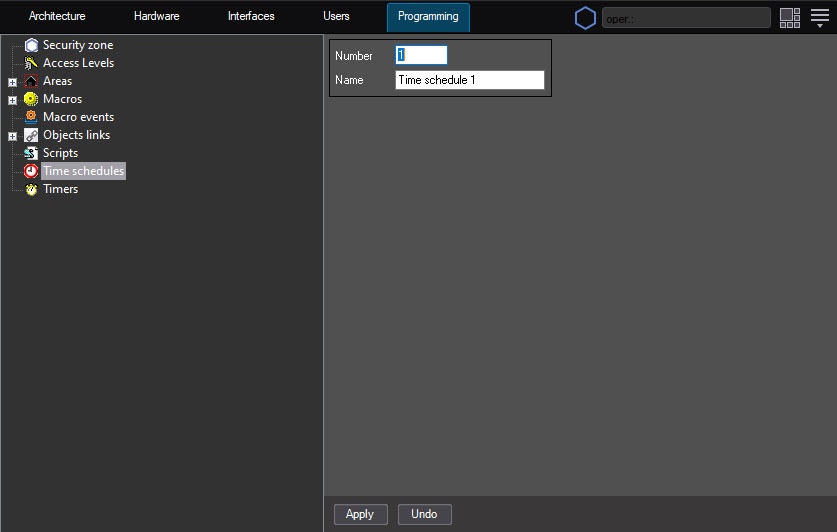

Create the Time schedule object on the basis of the Time schedules object in the objects tree.
Enter the number and the name of the time schedule in the corresponding fields of the identification panel of the Time schedule object.
Note
The object number must be in the range from 1 to 65534.
Click the Apply button.

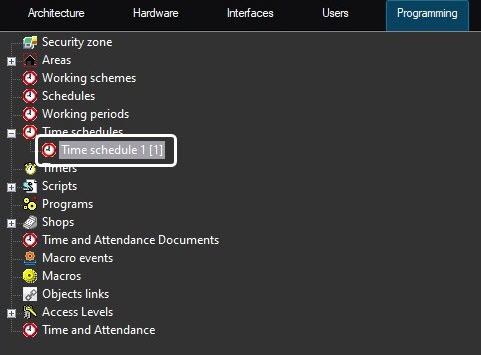

As a result, the Time schedule object appears in the objects tree.

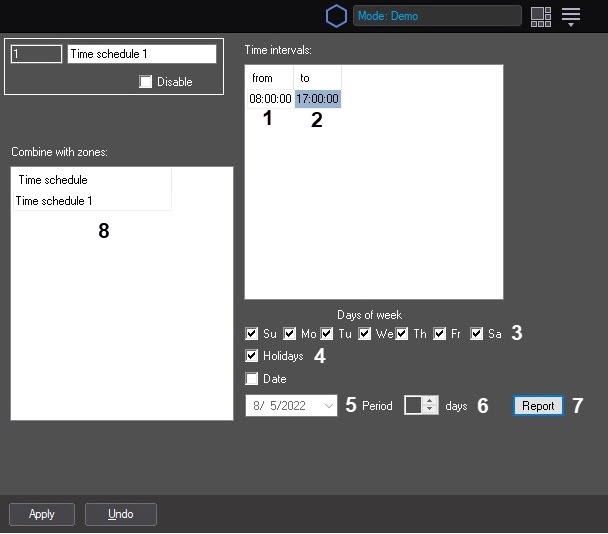

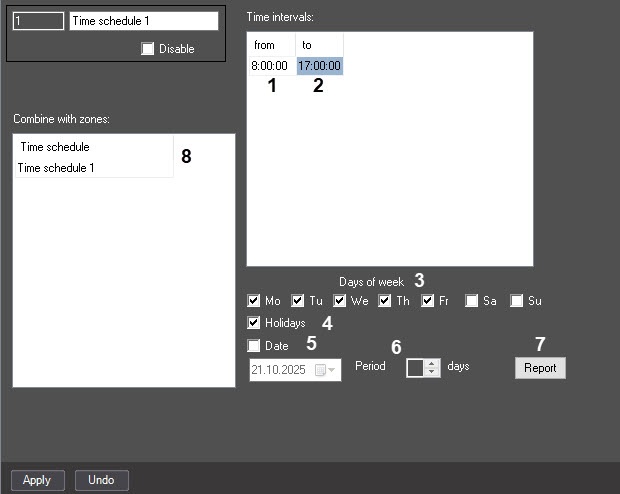

To configure the Time schedule object, specify the values of the following parameters:

No	Parameter name		Method for entering the parameter	Parameter description	Presentation	Default value		Value range
The Time intervals group
1	The from column		Enter the value in the field	Sets the exact time of starting the execution of a command	HH:MM:SS		NA	From 00:00:00 to 23:59:59
2	The to column		Enter the value in the field	Sets the exact time of ending the execution of a command	HH:MM:SS		NA	From 00:00:00 to 23:59:59
Out of the group
3	The Days of week checkboxes		Set the checkboxes Note. The parameter is inactive if you set the Date* checkbox (the point 5)*	Adds days of the week to the schedule. Days are added individually for each time interval	Boolean type		Clear	Set—the day of the week is added to the schedule Clear—the day of the week isn't added to the schedule
4	The Holidays checkbox		Set the checkbox	Adds holidays to the schedule. Days are added individually for each time interval	Boolean type		Clear	Set—the list of holidays is added to the schedule Clear—the list of holidays isn't added to the schedule
The Date group
5	Date	checkbox	Set the checkbox	Enables the Period__days field. If you set the checkbox, the Days of week group is disabled. The day is added individually for each time interval	Boolean type		Clear	Set—enable the Period__days field Clear—disable the Period__days field
5	Date	field	Enter the value in the field	Sets the exact date in the schedule. The day is added individually for each time interval	DD.MM.YYYY		Current date	From 00.00.0000 to 31.12.9999
6	The Period field		Enter the value in the field	Sets the periodicity in N days of the time schedule triggering, starting from the specified date (that is, the time schedule triggers every Nth day)	Sequence of numbers		NA	From 0 to 999999999999999. Periodicity is set individually for each time interval
7	The Report button		Click the button	Displays the window with the time schedules activity table	NA		NA	NA
The Combine with zones table
8	The Time schedule drop-down list		Select the value from the list	Sets the time schedule with which the given time schedule must be combined	Names of the registered Time schedule objects		NA	Depends on the number of the registered Time schedule objects

* The Holidays checkbox adds the list of days to the schedule that is specified in the settings of the Security zone object of the Programming tab.

If you set the moment of time interval start later than the moment of its end, the time schedule covers the current day (from the time interval start) and part of the following day (to the time interval end) with the condition that you set the time schedule for the current and following day. If you set the time schedule only for the current day, the time schedule ends at 0:00:00.

Note

You can use a time schedule combination to correct the main time schedule on special days, for example, days before holidays. To do this, you must specify the date of a special day and the time interval that must be added to the interval of the main schedule on the settings panel of the additional time schedule.

Attention!

If the time schedule parameters switch to the disabled state, the changes will come into effect after you restart Axxon PSIM.

Example: Now it is 16:00. The time schedule end time (the to column) was set to 20:00. Then it is changed to 16:00. In this case, to make the changes come into effect, you must restart Axxon PSIM. Before restarting, the time schedule is until 20:00.

Attention!

You cannot set the duration of the time schedule usage in days on its settings panel. Thus, disable the time schedule combination right after its application.

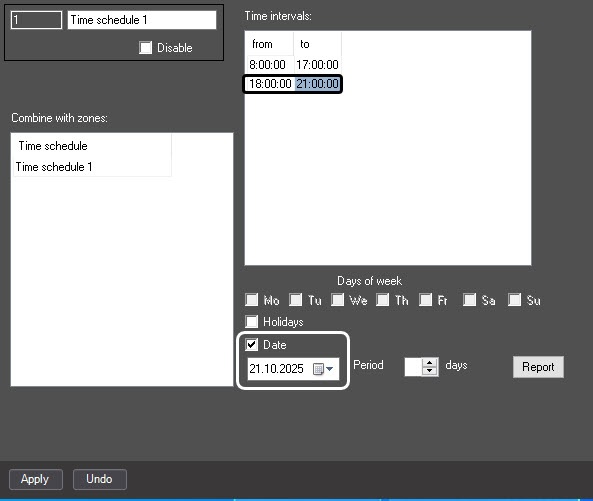

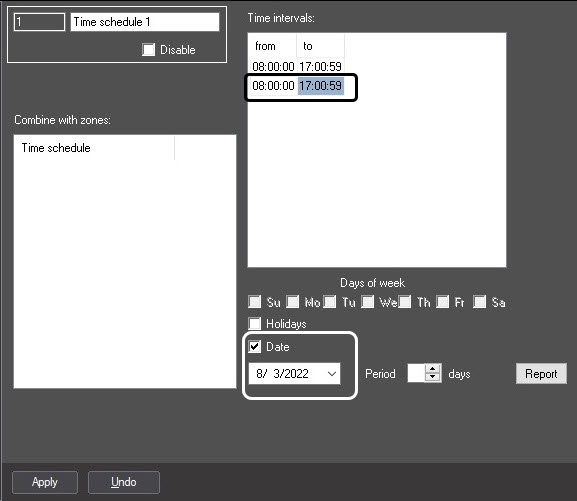

To configure the additional time interval, do the following:

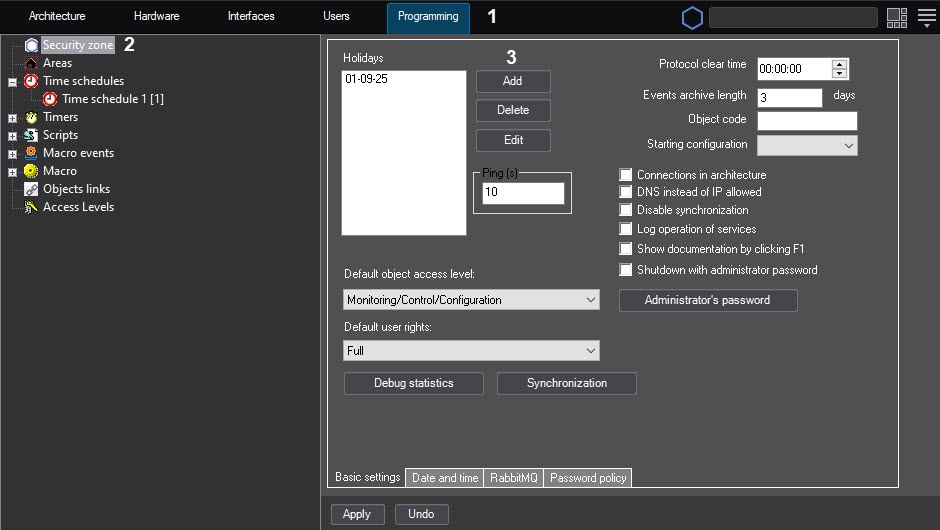

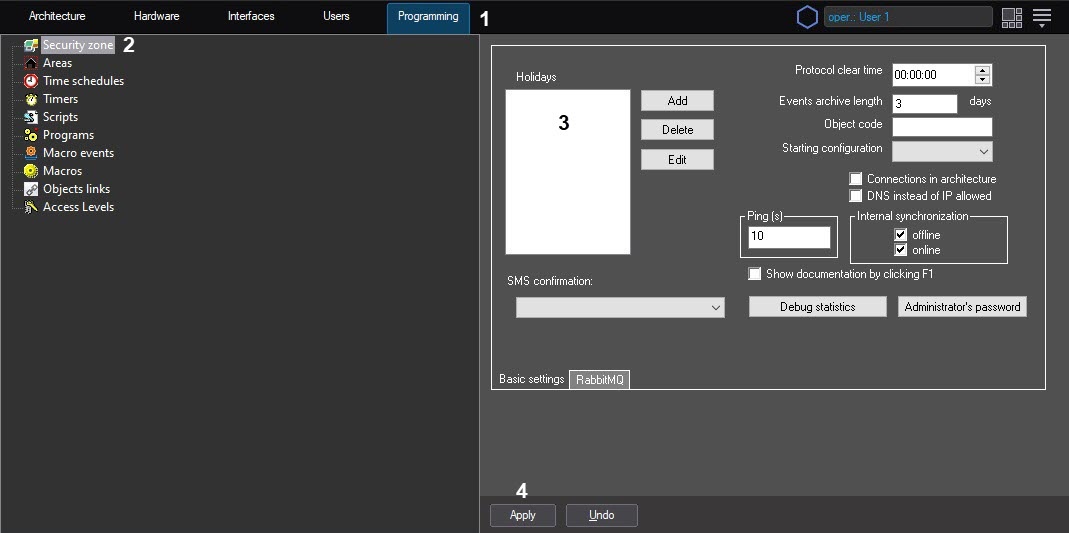

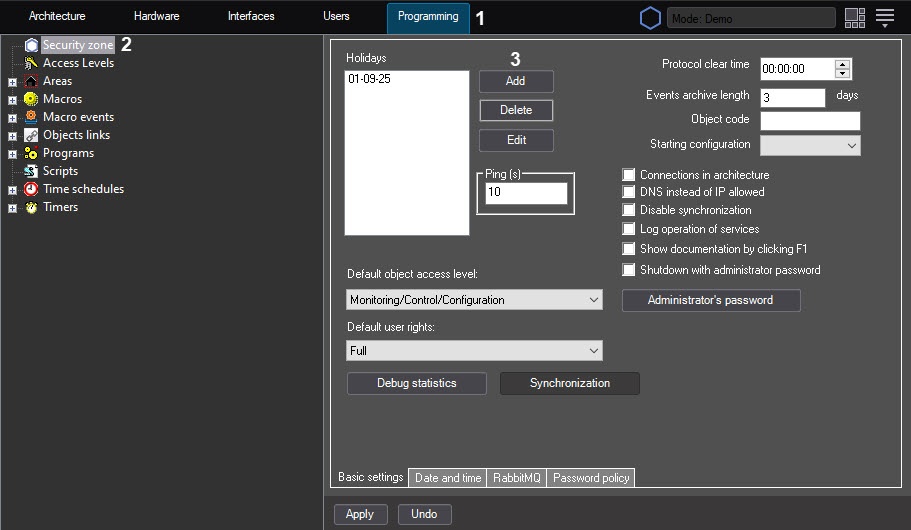

To create the list of holidays, do the following:

Open the Programming tab (1).
Select the Security zone object (2).
Click the Add button (3).
Select the holiday date in the Select date window.
Click the Apply button.

Creating and configuring time schedules is complete.
