In Axxon PSIM™ one can view time schedules states by all specified time intervals.

To view time schedules states, do the following:

  1. Click the Report button on the settings panel of the Time schedule object.

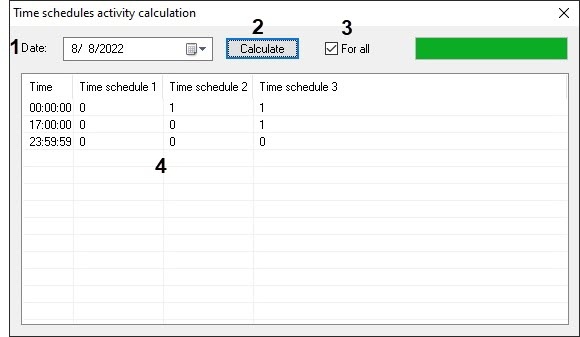

    The Time schedules activity calculation box appears.
  2. Select the required date in the Date list (1).
  3. If the data on all time schedules created in the system is to be displayed, then set the For all checkbox (3).
  4. Click the Calculate button (2).

As a result, the table with active time schedules (marked 1) and inactive time schedules (marked 0) is created (4).
