The Keyboard object is used to register and configure a special keyboard in Axxon PSIM. The keyboard is used for the operational control of the main functions of the digital video surveillance system with the distributed architecture based on Axxon PSIM.

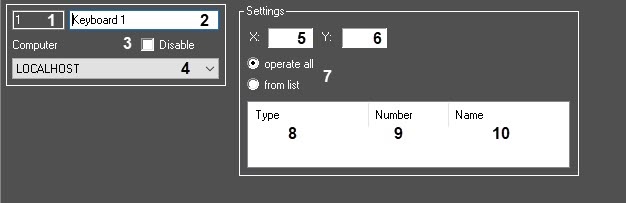

The settings panel of the Keyboard object is shown in the figure.
The table describes the parameters of the settings corresponding to the elements of the settings panel of the Keyboard object.
№
| Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
1 | The Identification number* | Automatically | Displays the identification number of the Keyboard object in the video surveillance system with distributed architecture | Digits, letters, periods, hyphen, dash, and underscore | NA | Depends on the number of the Keyboard objects in the video surveillance system with distributed architecture |
2 | The Name* | Enter the value in the field | Sets the name of the Keyboard object in the video surveillance system with distributed architecture | Latin alphabet, Cyrillic, digits and service characters | Keyboard | A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive Number of characters—from 1 to 60 |
3 | The Disable | Set the checkbox | Disables the Keyboard object in the video surveillance system with distributed architecture | Boolean type | Clear | Set—the Keyboard object is disabled and isn't used Clear—the Keyboard object is enabled and used |
4 | The Computer | Select the value from the list | Sets the Computer parent object of the system with distributed architecture to which the given Keyboard object belongs | Names of the Computer objects registered in the system | Name of the Computer parent object | Depends on the number of the Computer objects in the video surveillance system with distributed architecture |
The Settings group | ||||||
5 | The X field | Enter the value in the field | Sets the coordinate on the horizontal X axis of the upper left corner of the object selection window to which the given command refers | % of the screen width | NA | From 0 to 100% |
6 | The Y field | Enter the value into the field | Sets the coordinate on the vertical Y axis of the upper left corner of the object selection window to which the given command refers | % of the screen height | NA | From 0 to 100% |
7 | Control devices* | Set the switch in the required position | Sets the objects that can be controlled using the keyboard | List of device types for control | Operate all | Operate all—the operator can control all objects according to the settings in the keyboard configuration file From list—the operator can control only those objects that are specified in the list below |
8 | The Type | Select the value from the list | Sets the type of the object that can be controlled using the keyboard | Names of the object types registered in the system | NA | Depends on the number of the object types created in the video surveillance system with distributed architecture |
9 | The Number | Select the value from the list | Sets the identification number of the object that can be controlled using the keyboard | Sequence of numbers | NA | Depends on the number of the created devices of the type selected in item 8 in the video surveillance system with distributed architecture |
10 | The Name | Automatically | Indicates the name of the object that can be controlled using the keyboard | Name of the objects of the selected type registered in the system | NA | Depends on the number of the created devices of the type selected in item 8 in the video surveillance system with distributed architecture |
*Name of the element isn't displayed in the settings panel of the given object
