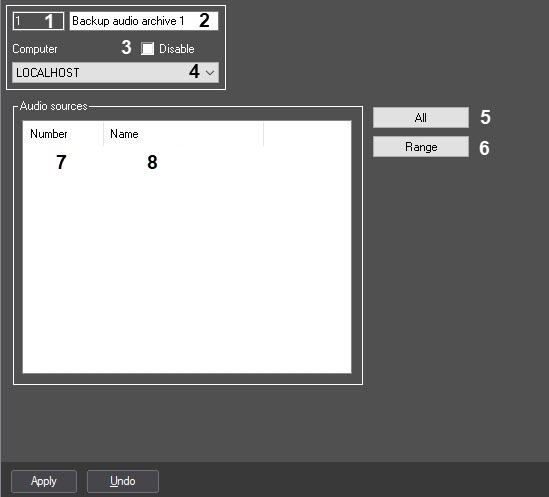

The settings panel of the Backup audio archive system object is shown in the figure.
The table describes the setting parameters corresponding to the elements of the settings panel of the Backup audio archive system object.
№
| Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
| 1 | The Identification number* | Automatically | Displays the identification number of the Backup audio archive system object | Digits, letters, periods, hyphen, dash, and underscore | NA | Depends on the number of the Backup audio archive object in the video surveillance system with distributed architecture |
| 2 | The Name* | Enter the value in the field | Sets the name of the Backup audio archive object in the video surveillance system with distributed architecture | Latin alphabet, Cyrillic, digits, and service characters | Backup audio archive | A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60 |
| 3 | The Disable | Set the checkbox | Disables the Backup audio archive object | Boolean type | Clear | Set—the Backup audio archive object is disabled and isn't used Clear—the Backup audio archive object is enabled and used |
| 4 | The Computer drop-down list | Select the value from the list | Sets the Computer parent object for the given Backup audio archive object | Names of the Computer objects registered in the system | Name of the Computer parent object | Depends on the number of the Computer objects in the system |
| 5 | The All button | Click the button | Adds all Microphone objects created in the system | NA | NA | NA |
| 6 | The Range button | Click the button | Opens the window for the bulk adding of microphones to the list of the backup audio archive | NA | NA | NA |
| The Audio sources table | ||||||
7 | The Number | Select the value from the list | Sets the name of the microphone to copy the audio archive | Sequence of numbers | NA | Depends on the number of microphones registered in the system |
| 8 | The Name drop-down list | Automatically | Displays the name of the microphone to copy the audio archive | Names of the registered microphones in the system | NA | Depends on the number of microphones registered in the system |
*Name of the element isn't displayed in the settings panel of the given object
