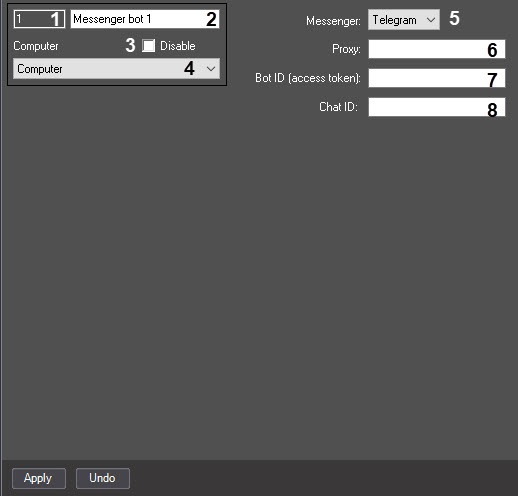

The Messenger bot object is used for sending messages to Telegram. The settings panel of the Messenger bot object is shown in the figure.
The table describes the setting parameters corresponding to the elements of the settings panel of the Messenger bot object.
№ | Parameter | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
|---|---|---|---|---|---|---|
1 | The Identification number* | Automatically | Displays the identification number of the Messenger bot object in the video surveillance system with distributed architecture | Digits, letters, periods, hyphen, dash, and underscore | NA | Depends on the number of the Messenger bot objects in the video surveillance system with distributed architecture |
2 | The Name* | Enter the value in the field | Sets the name of the Messenger bot object in the video surveillance system with distributed architecture | Latin alphabet, Cyrillic alphabet, digits, and service characters | Messenger bot | A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60 |
3 | The Disable | Set the checkbox | Disables the Messenger bot object in the video surveillance system with distributed architecture | Boolean type | Clear | Set—the Messenger bot object is disabled and isn't used Clear—the Messenger bot object is enabled and used |
4 | The Computer | Select the value from the list | Sets the Computer parent object to which the given Messenger bot object belongs | Names of the Computer objects registered in the system | Name of the Computer parent object | Depends on the number of the Computer objects in the video surveillance system with distributed architecture |
The Settings group* | ||||||
5 | The Messenger drop-down list | Select the value from the list | Sets a messenger to send messages | List of messengers | Telegram |
|
6 | The Proxy | Enter the value in the field | Sets the proxy server for sending messages | Latin alphabet, digits, service characters | NA | A line containing a sequence of any characters (Latin letters, digits, service characters). Number of characters—from 1 to 60 |
7 | The Bot ID (access token) field | Enter the value in the field | Sets the identifier of the Messenger bot | Latin alphabet, digits, service characters | NA | A line containing a sequence of any characters (Latin letters, digits, service characters). Number of characters—from 1 to 60 |
| 8 | The Chat ID field | Enter the value in the field | Sets the chat identifier in the messenger | Latin alphabet, digits, service characters | NA | A line containing a sequence of any characters (Latin letters, digits, service characters). Number of characters—from 1 to 60 |
*The name of the element isn't displayed in the settings panel of the given object
