The settings panel of the Address book object

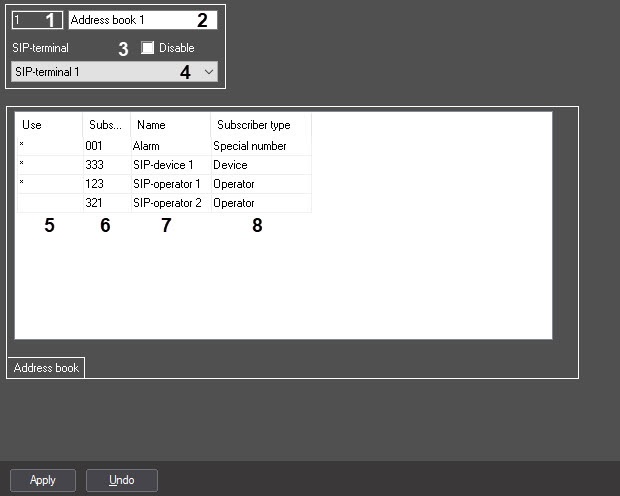

The settings panel of the Address book system object is shown in the figure below.

The table describes the setting parameters of the Address book system object.

№	Parameter	Method for setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Identification number* field	Automatically	Displays the identification number of the Address book object in the video surveillance system with distributed architecture	Digits, letters, periods, hyphen, dash, and underscore	NA	Depends on the number of the Address book object in the video surveillance system with distributed architecture
2	The Name* field	Enter the value in the field	Sets the name of the Address book object in the video surveillance system with distributed architecture	Latin alphabet, Cyrillic, digits, and service characters	Address book	A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60
3	The Disable checkbox	Set the checkbox	Disables the Address book object in the video surveillance system with distributed architecture	Boolean type	Clear	Set—the Address book object is disabled and isn't used Clear—the Address book object is enabled and used
4	The SIP-terminal drop-down list	Select the value from the list	Sets the SIP-terminal parent object of the system with distributed architecture to which the given Address book object belongs	Names of the SIP-terminal objects registered in the system	Name of the SIP-terminal parent object	Depends on the number of the SIP-terminal objects in the video surveillance system with distributed architecture
5	The Use checkbox	Set the checkbox	Sets the list of subscriber numbers that must be available in this address book	Boolean type	Clear	Set—the number is added to this address book Clear—the number isn't added to this address book
6	The Subscriber field	Automatically	Displays the subscriber number	Numbers of the subscribers registered in the system	NA	Depends on the number of subscribers in the video surveillance system with distributed architecture
7	The Name field	Automatically	Displays the name of the object in Axxon PSIM	Names of the subscribers registered in the system	NA	Depends on the number of subscribers in the video surveillance system with distributed architecture
8	The Subscriber type field	Automatically	Displays the type of subscriber: Operator, Device, Special number	Subscriber types registered in the system	NA	Operator, Device, Special number

*Name of the element isn't displayed in the settings panel of the given object
