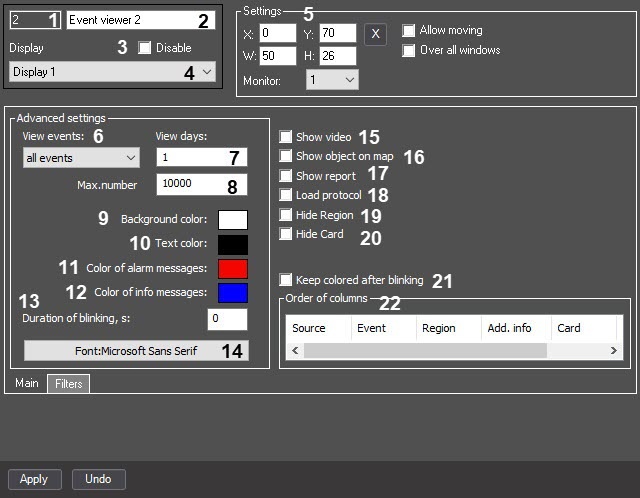

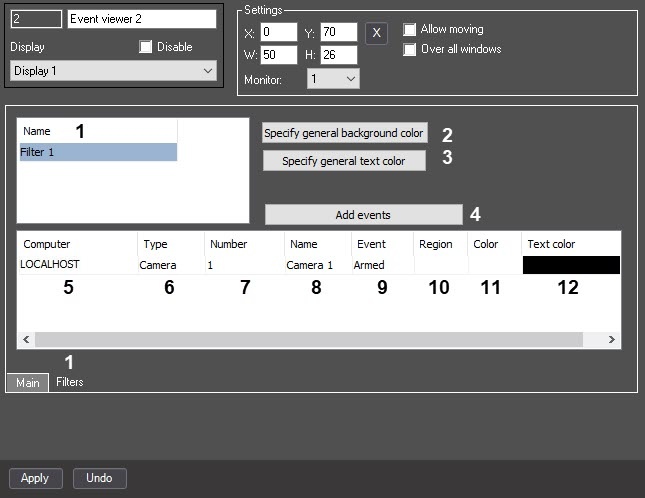

The settings panel of the Event viewer object

№

Parameter

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

The Identification number*
field

Automatically

Displays the identification number of the Event viewer object in the video surveillance system with distributed architecture

Digits, letters, periods, hyphen, dash, and underscore

NA

Depends on the number of the Event Viewer objects in the video surveillance system with distributed architecture

2

The Name*
field

Enter the value in the field

Sets the name of the Event viewer object in the video surveillance system with distributed architecture

Latin and Cyrillic letters, digits, and service characters

Event viewer

A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive.

Number of characters—from 1 to 60

3

The Disable
checkbox

Set the checkbox

Disables the Event viewer object in the video surveillance system with distributed architecture

Boolean type

Clear

Set—the Event viewer object is disabled and isn't used

Clear—the Event viewer object is enabled and used

4

The Display
drop-down list

Select the value from the list

Sets the Display parent object of the system with distributed architecture to which the given Event viewer object belongs

Names of the Display objects registered in the system

Name of the Display parent object

Depends on the number of the Display objects in the video surveillance system with distributed architecture

5

The X field

Enter the value in the field

Sets the X coordinate in the horizontal axis for the upper left corner of the window of the Event viewer object on the screen

% of the screen width

0

From 0 to M*100, where M is the number of the installed monitors

The Y field

Enter the value in the field

Sets the Y coordinate in the vertical axis for the upper left corner of the window of the Event viewer object on the screen

% of the screen height

70

From 0 to M*100, where M is the number of the installed monitors

The W field

Enter the value in the field

Sets the width of the window of the Event viewer object

% of the screen width

50

From 0 to M*100, where M is the number of the installed monitors

The H field

Enter the value in the field

Sets the height of the window of the Event viewer object

% of the screen width

26

From 0 to M*100, where M is the number of the installed monitors

The Monitor
drop-down list

Select the value from the list

Sets the number of the monitor in the system for which the coordinates are specified

Numbers of monitors in OS

1

From 1 to 16

Opens the window to set the size and position of the Event viewer window using the mouse

Allows the operator to change the position of the Event viewer window using the mouse

Set—the operator can change the position of the Event viewer window

Clear—the operator cannot change the position of the Event viewer window

Allows displaying the Event viewer window over all windows

Set—the Event viewer window is displayed over all windows

Clear—the Event viewer window is displayed in the standard mode

6

Sets the events that must be displayed in the Event viewer window

• all events—all events are displayed in the event viewer window;
• last event—one last event is displayed in the event viewer window;
• all last events—all last events for all selected objects are displayed

7

8

9

Select the value from the list or in the Color window.

Note. Double click the field to open the Color window

10

Select the value from the list or in the Color window.

Note. Double click the field to open the Color window

11

Select the value from the list or in the Color window.

Note. Double click the field to open the Color window

12

Select the value from the list or in the Color window.

Note. Double click the field to open the Color window

13

14

15

The Show video checkbox

Set the checkbox

Allows the operator to view the events archive initialized by the event viewer as Record to disk using the Event viewer window

Boolean type

Clear

Set—the operator can view the events archive using the Event viewer window

Clear—the operator cannot view the events archive using the Event viewer window

16

The Show object on map
checkbox

Set the checkbox

Allows the operator to view the objects, displayed in the Event viewer window, on the map

Boolean type

Clear

Set—the operator can view the objects, displayed in the event viewer window, on the map

Clear—the operator cannot view the objects, displayed in the event viewer window, on the map

17

The Show report
checkbox

Set the checkbox

Allows the operator to create a printed form of the report and print the information about all events in the event viewer over the specified period of time

Boolean type

Clear

Set—the operator can create a printed form of the report and print the information about all events in the event viewer over the specified period of time

Clear—the operator cannot creat a printed form of the report and print the information about all events in the event viewer over a specified period of time

18

The Load protocol
checkbox

Set the checkbox

Determines the latest 1000 events registered by the Event Viewer with the latest system start that must be downloaded with the start of Axxon PSIM

Boolean type

Set—the latest 1000 events registered by the Event Viewer with the latest system start, are downloaded with the start of Axxon PSIM

Clear—the latest events registered by the Event Viewer with the latest system start, aren't downloaded with the start of Axxon PSIM

Set—the Region column isn't displayed

Clear—the Region column is displayed

Disables the display of the Card column in the Event viewer window.
See also Guide for configuring and working with the Access Manager module the Displaying card number for access events in the Event viewer section

Set—the Card column isn't displayed

Clear—the Card column is displayed

Set—the alarm messages are highlighted by the selected color after the blinking stops

Clear—the alarm message isn't highlighted by the selected color after the blinking stops. It is highlighted by the color specified in the filter

Sets the order of columns that are displayed in the Event viewer window.

Note. If you set the Hide Card and/or Hide Region checkboxes, the corresponding columns aren't displayed in the Event viewer window

• Source,
• Event,
• Region,
• Add. info,
• Card,
• Date and time

• Source,
• Event,
• Region,
• Add. info,
• Card,
• Date and time

Sets the filter name in the Event viewer window

Sets the Computer object on the basis of which the objects included in the filter must be created

Names of the Computer objects registered in the system

Depends on the number the Computer objects in the distributed video surveillance system.

Blank field—filtering by computer isn't required, or the required object isn't created on the basis of the Computer object

6

The Type drop-down list

Select the value from the list

Sets the types of a device that must be displayed in the event viewer.

Note. If the field is blank, the Event viewer window displays all events of all objects in the system

Types of objects registered in the system

Depends on the number of the device types created in the video surveillance system with distributed architecture

7

The Number drop-down list

Select the value from the list

Sets the identification number of the device.

Note. If the field is blank, the Event viewer window displays all events of all objects of the selected type

Sequence of numbers

Depends on the number of the created devices of the selected type in the video surveillance system with distributed architecture

9

The Event
drop-down list

Select the value from the list

Sets the event received from the selected devices that must be logged into the event viewer.

Note. If the field is blank, the Event viewer window displays all events received from the specified devices

Names of the event types for the selected type of devices

Depends on the type of device

10

The Region
drop-down list

Select the value from the list

Sets the region. The events from the devices located in this region are displayed in the event viewer

Names of the Region elements registered in the system

Depends on the number of the Region structure elements created in the video surveillance system with distributed architecture
