Creating ArpEdit objects

The ArpEdit objects are divided into the interface and variable elements. To create a new object in the workspace, do the following:

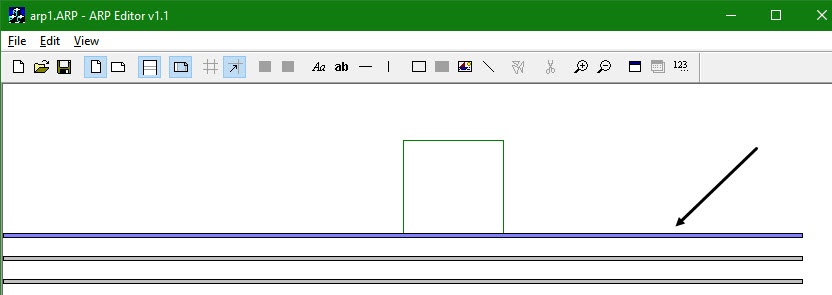

Select the section of the workspace in which you want to add the object by clicking on it. The selected section is highlighted in blue.
Go to the ArpEdit toolbar.
Select the added object by left-clicking the appropriate icon on the toolbar (see description below).
Left-click the point in the workspace in which you want to place the upper left point of the object.

Note

You can change the size of the created object in two ways:

By dragging the right or bottom edge of the object with the mouse.
By setting new values for the height and width of the object in the Field's options window (see Setting field's options).

You can also change the position of the created object in two ways:

By dragging the top or left edge of the object with the mouse.
By setting new coordinates of the object in the Field's options window (see Setting field's options).

Name	Description	Purpose
Text	Non-editable text field	Display the non-editable text information

Name	Description	Purpose
Variable	Editable text field, hidden text field, button or the drop-down list	Displays the information from the database when creating badges; Variable when creating dialog windows

Name	Description	Purpose
Line	A line of the specified length and direction	Design element

Name	Description	Purpose
Frame	Rectangular frame of the set size	Design element

Name	Description	Purpose
Square	Filled rectangle of the set size	Design element

Name	Description	Purpose
Image	Image placed at the specified address	Insert user photos in the badge form for printing

Creating a new object is complete.
