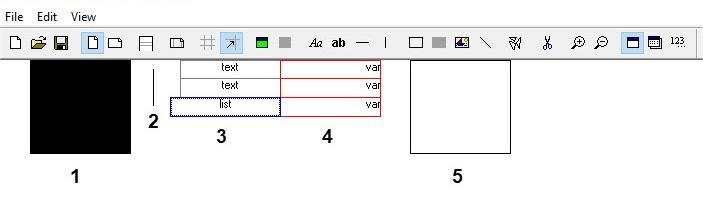

The design elements in the dialog window correspond to their appearance in the workspace. You can add the following design elements:

  1. Square (1). Adding a square in the workspace is performed by clicking the button on the ArpEdit utility toolbar.
  2. Line (2). Adding a line in the workspace is performed using one of the following buttons: on the ArpEdit utility toolbar.
  3. Text (3). Adding the text field with the non-edited information in the workspace is performed by clicking the button on the ArpEdit utility toolbar.
  4. Variable (4). Adding the editable text field (hidden field, button, or drop-down list) in the workspace is performed by clicking the button on the ArpEdit utility toolbar.
  5. Frame (5). Adding a frame in the workspace is performed by clicking the button on the ArpEdit utility toolbar.

Creating design elements is complete.
