Creating variables

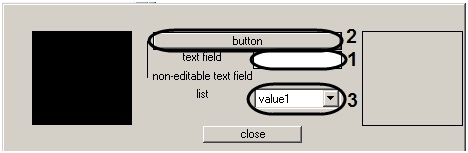

Creating variables in the workspace is done using the  on the ArpEdit toolbar. Depending on the variable setting they may be displayed in the dialog box as follows:

1. Editable text field (1). Additional configuration after adding is not needed (5).

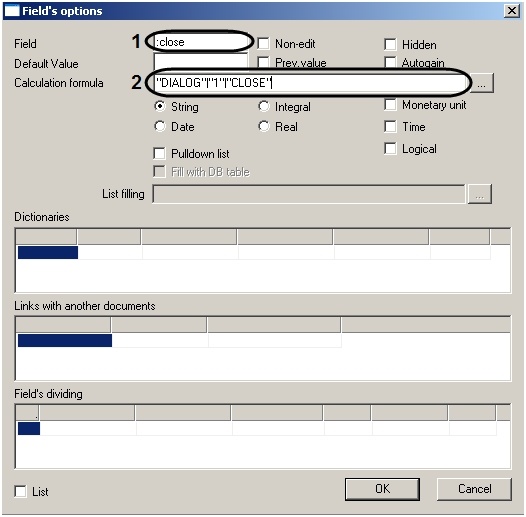

2. Button (2). In order to display a variable as a button in the dialog box, you must configure it after adding it to the workspace, as follows (6):
   1. Click  on the toolbar. The Field options window will open.

   2. Place a colon in front of the variable name (1).
   3. In the Calculation formula field, specify the variables for the DoReact function using quotes “,” – which will be used with the button is clicked (2).
   4. Click OK.

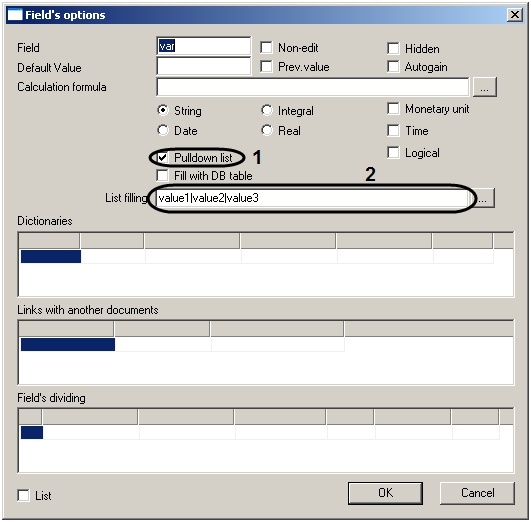

3. Drop-down list (3). In order to display a variable as a drop-down menu in the dialog box, you must configure it after adding it to workspace, as follows (7):
   1. Click  on the toolbar.
   2. Double click on the frame around the variable name. The Field options window will open.

   3. Check the Drop-down menu [Pulldown list] box (1).
   4. If you would like to manually specify menu values, then you must enter the desired value in the Fill list field, using the character “|” as the separator between values (2). To enter a large amount of text or to paste text from a file, click  and use the editor (see the section in APPENDIX 2. Entering text using the editor).
   5. Click OK.

Creating variables is completed.
