Documentation for Axxon PSIM 2.0. Documentation for other versions of Axxon PSIM is available too.

Previous page Next page


The idb.exe utility is used for administering the databases of Axxon PSIM. For information on how to use the utility for administering databases, see Appendix 3. Axxon PSIM software database management.

Note

When you work with the idb.exe utility, the Windows Firewall/ICS system service must be enabled.

When you switch between databases using the Select data source drop-down list (see Description of the idb.exe utility interface), note that the specified connection parameters to the currently selected database are partially reset. This is due to the Microsoft security policy.

Note

If you select the unsupported data provider, the window with the corresponding warning appears:

To save the parameters in the Connection string field, do the following before you switch to the administration of another database:

  1. Make sure that the database for which the connection settings must be saved is selected in the Select data source list (1).
  2. Click the  button (2).

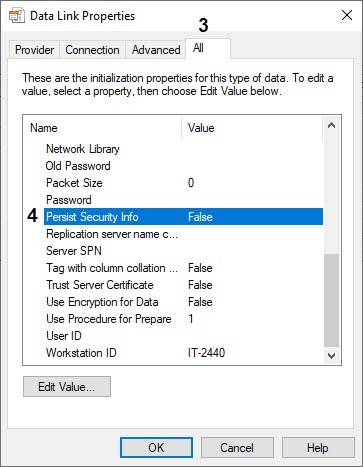

  3. In the Data Link Properties window that opens, go to the All tab (3).
  4. Select the Persist Security Info initialization property (4).
  5. Click the Edit Value... button.

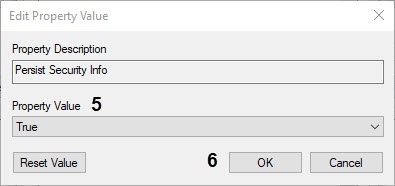

    As a result, the Edit Property Value window opens.

    Note

    You can open the Edit Property Value window by double-clicking the left mouse button on the property name.

  6. From the Property Value drop-down list (5), select the True value.
  7. Click OK (6).
  8. Click OK in the Data Link Properties window to update the settings and close the window.
  9. Click OK in the idb.exe utility to save the settings.

As a result, the next time you switch to the selected database, the connection parameters to it aren't reset.
