When you select the default user rights value, the system automatically assigns the corresponding rights to the user without assigned rights.

To set the default user rights, do the following:

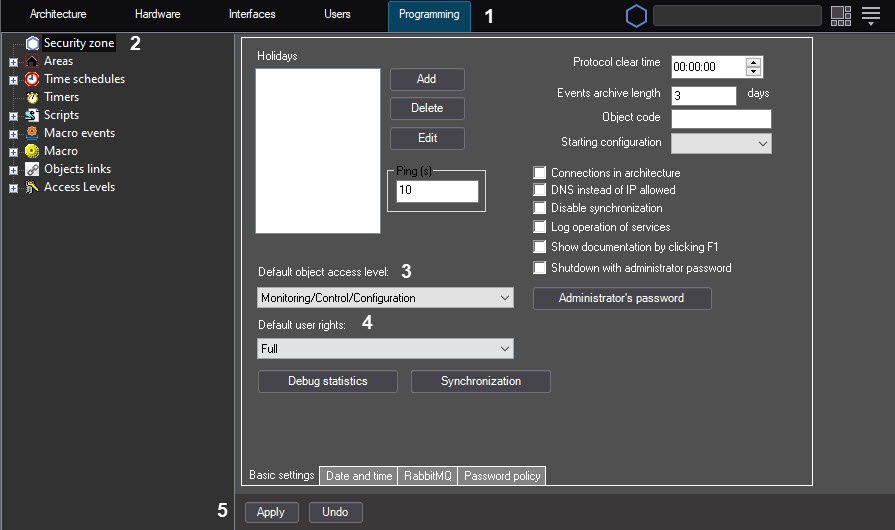

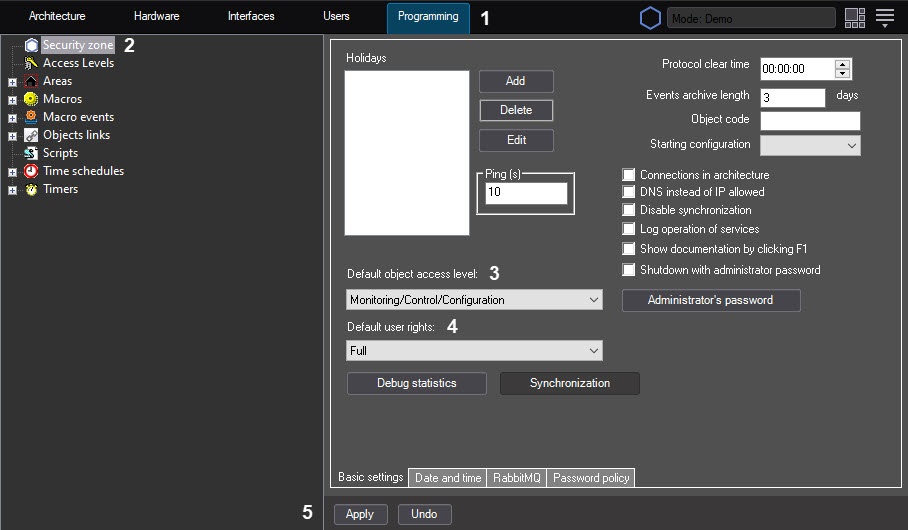

  1. Go to the Programming tab in the System settings window (1).

  2. Select the Security zone object in the objects tree (2).
    As a result, the settings panel of this object is displayed in the right part of the System settings window.
  3. From the Default object access level drop-down list (3), select the required option:
    1. No access;
    2. Monitoring;
    3. Monitoring/Control;
    4. Monitoring/Control/Configuration.
  4. From the Default user rights drop-down list (4), select the default rights:
    1. Full. If you select this value, the rights created for system operation are unlimited;
    2. User rights. You can create these rights on the Users tab. For more details, see Registration of operator rights.
  5. Click the Apply button (5).

Attention!

To apply changes to the default user rights, restart Axxon PSIM. These changes don't affect the rights of existing users.

 Setting the default user rights is complete.
