Configuring the relay of the AIM reader

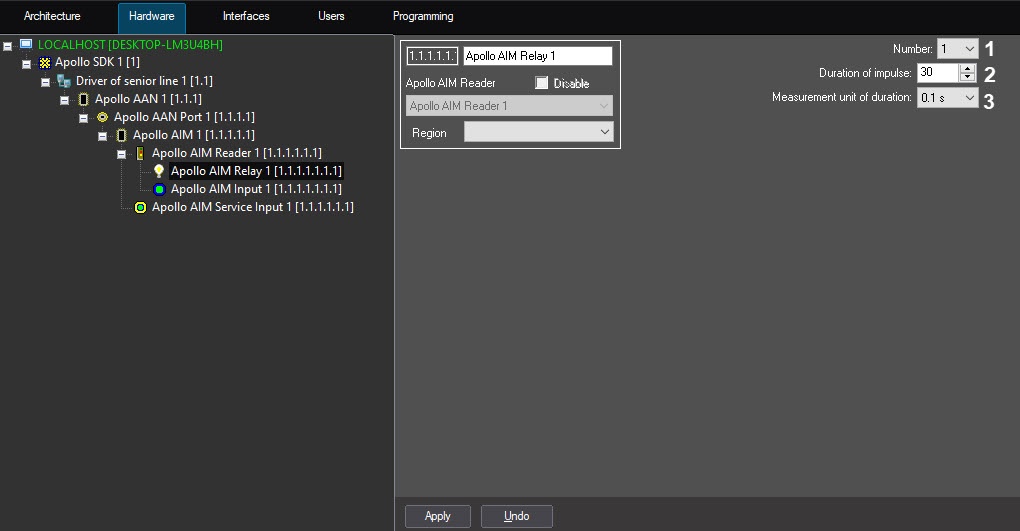

Relay of AIM Reader is configured on the settings panel of the Apollo AIM Relay object created on the basis of the Apollo AIM Reader object.

To configure the relay, do the following:

1. From the Number drop-down list (1), select the relay address.
2. Specify duration of relay impulse:

   1. In the Duration of impulse field (2), set the value in the selected units defining the impulse duration.
   2. From the Measurement unit of duration drop-down list (3), select the measurement unit of relay impulse.
3. Click the Apply button.
