Setting up HoneyWell N-1000 access point readers

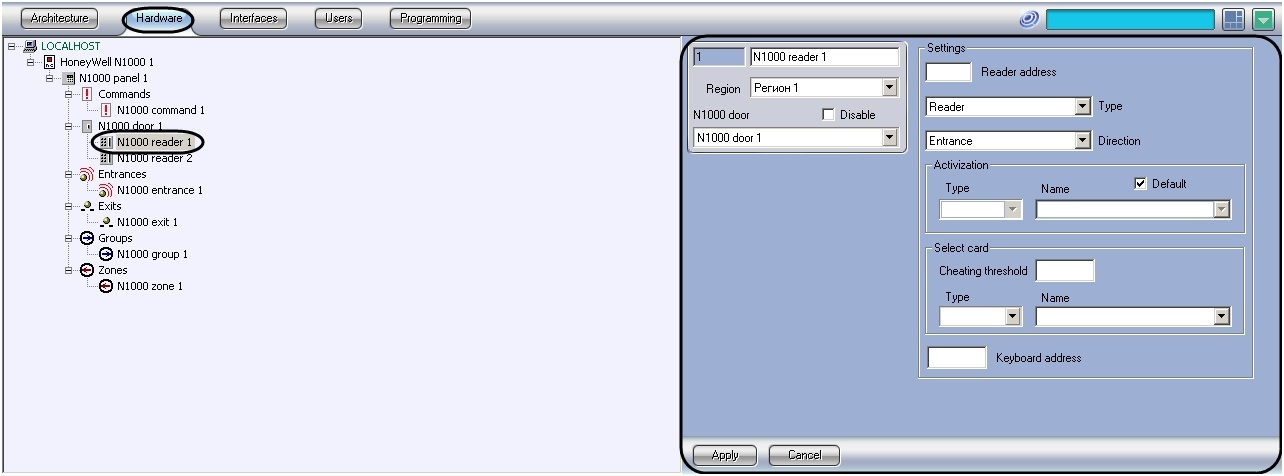

Setting up access point readers is carried out on setting panel of N1000 reader object. This object is created on the basis of N1000 door object on Hardware tab of System settings dialog box.

Setting up access point readers is carried out the following way:

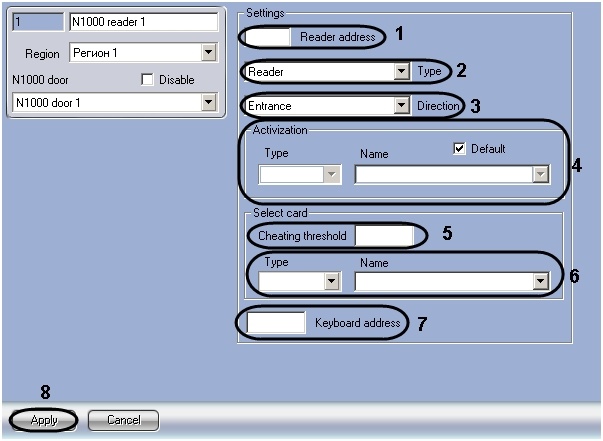

1. Go to setting panel of N1000 reader object.

2. Set reader address in the corresponding field (1).
3. Select reader type from Type dropdown list: reader only, reader with keyboard, keyboard only (2).
4. If keyboard is used set its address in the corresponding field (7).
5. From Direction dropdown list select reader operation mode: entrance or exit (3).

6. In Activization setting group deselect Default checkbox and select object corresponding to  relay or relay group (both entrance and exit) for activation after passing through this reader (4).

   Note.

   If Default checkbox is set then there is activation of device that is set on default in equipment settings.
7. In Cheating threshold field set a number that corresponds to the number of failed access attempts after which there is activation of specified device (5).
8. From Type and Name dropdown lists select object corresponding to  relay or relay group (both entrance and exit) for activation after attempt to select access card (6).
9. Click Apply in order to save changes (8).

Setting up access point reader is completed.
