Creation and setting up of exits

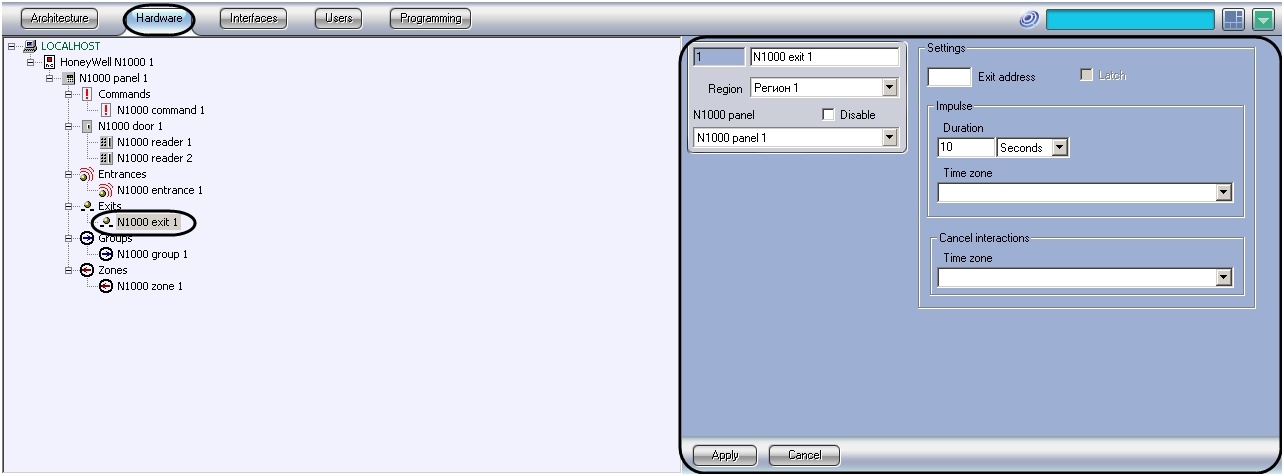

Setting up exits is carried out on setting panel of N1000 exit object.  This object is created on the basis of N1000 panel object on Hardware tab of System settings dialog box.

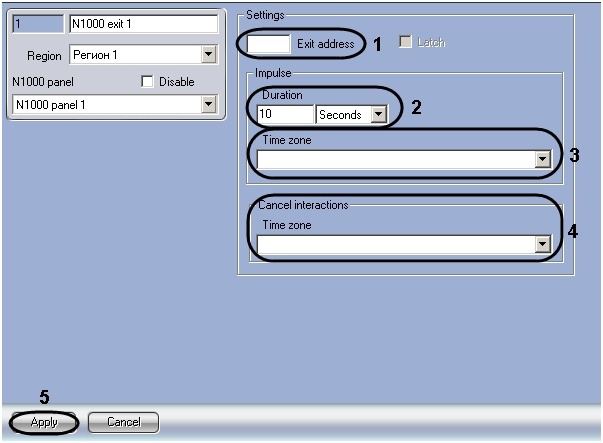

Setting up exits is carried out the following way:

1. Go to setting panel of N1000 exit object.

2. Set address of exit in Exit address (1).
3. In Impulse setting group set parameters of exit impulse:
   1. In Duration field set the period during which power supply  (impulse) will be given to exit (2);
   2. From the corresponding dropdown list select time zone during which power supply will be given to exit automatically (3).
4. If it’s necessary set time zone during which there will be no interactions connected with this exit (4).
5. Click Apply in order to save changes (5).

Setting up exit is completed.
