Creation and setting up of entrances

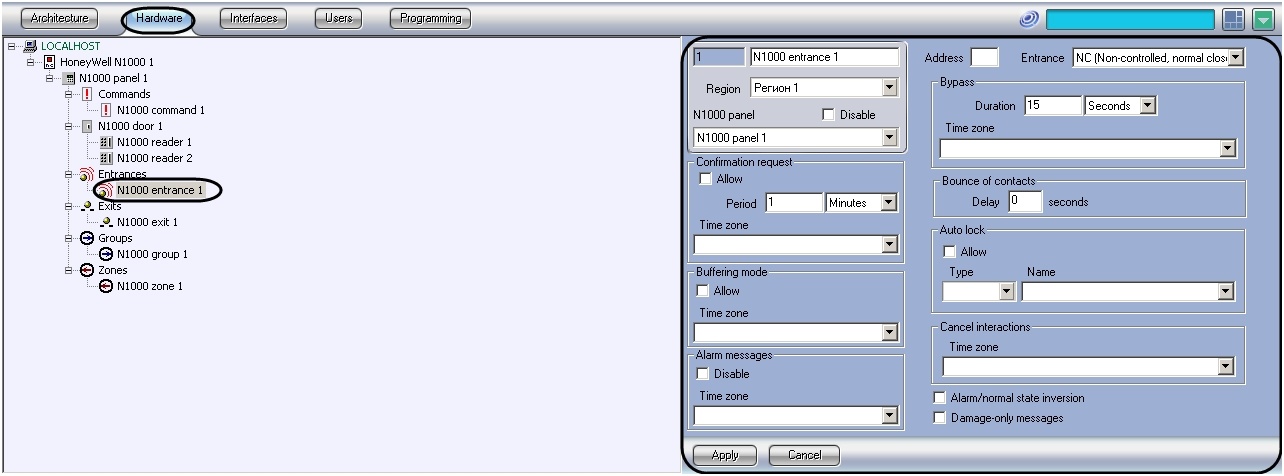

Setting up entrances is carried out on setting panel of N1000 entrance object. This object is created on the basis of N1000 panel object on Hardware tab of System settings dialog box.

Setting up entrances is carried out the following way:

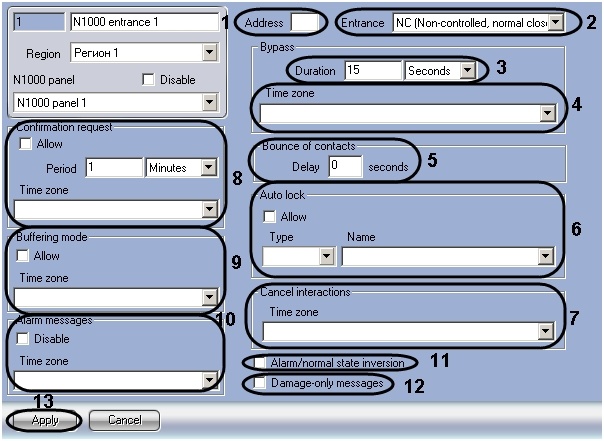

1. Go to setting panel of N1000 entrance object.

2. Set entrance address in Address (1).
3. From Entrance dropdown list select type of entrance (2).
4. In Bypass setting group set parameters of entrances disconnection:
   1. In  Duration field set period during which entrance will be disconnected (3);
   2.  From corresponding dropdown list select time zone during which entrance disconnects automatically (4).
5. Set delay of bounce of entrance contacts (in seconds) in the corresponding field (5).
6. If it’s necessary to switch on Auto lock function set Allow checkbox and select necessary object from Type and Name dropdown lists (6).
7. If it’s necessary set time zone during which there will be no interactions connected with this entrance (7).
8. If it’s necessary to require confirmation while activating entrance then set Allow checkbox, set period of time during which the confirmation should be received and select time zone during which the confirmation will be required (8).
9. If it’s necessary to activate buffering mode then set Allow checkbox and select time zone during which this mode will be active (9).
10. If it’s necessary to disable alarm messages then set Disable checkbox and select time zone during which there will be the prohibition (10).
11. Set Alarm/normal state inversion checkbox if it’s necessary to substitute Alarm state with Normal and vice versa (11).
12. If it’s necessary to limit incoming messages by damage-only messages then set the corresponding checkbox (12).
13. Click Apply in order to save changes (13).

Setting up entrance is completed.
