To configure the ZK Teco elevator control panel, do the following:

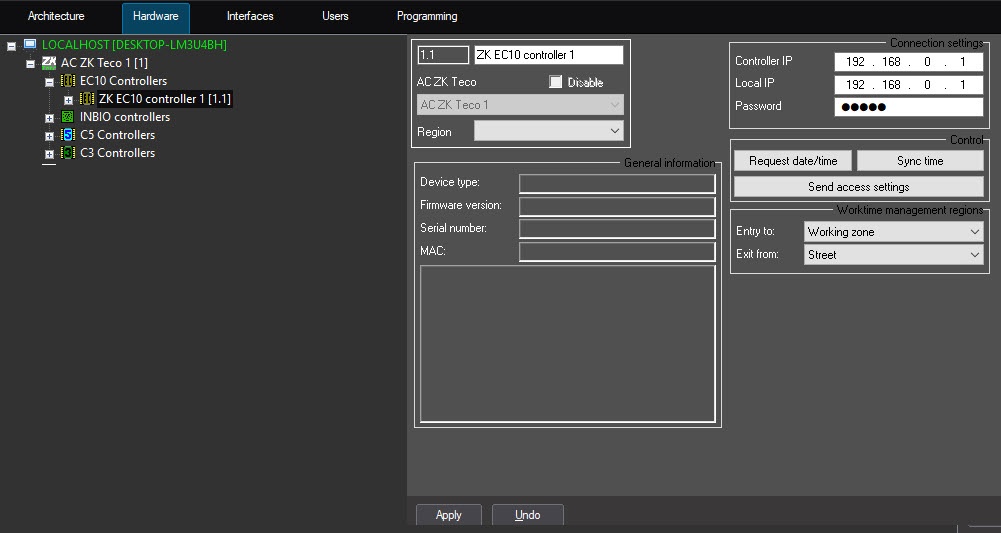

  1. Go to the settings panel of the ZK EC10 controller object that is created on the basis of the AC ZK Teco parent object.
  2. Click the Request date/time button to request the time of the ZK Teco elevator control panel. The result of the request will be displayed in the Event Viewer interface window.
  3. Click the Sync time button to synchronize the time of the ZK Teco elevator control panel with the time of the Server.
  4. Click the Send access settings button to send the access settings to the ZK Teco elevator control panel.
  5. From the Entry to drop-down list, select the region located on the exit side of the door.
  6. From the Exit from drop-down list, select the region located on the entry side of the door.
  7. Click the Apply button.

Note

After a successful connection with the elevator control panel, general information about the device will automatically be displayed in the corresponding area on the left side of the settings panel.
