You can configure the ZK Teco C3, C5, InBio controllers on the settings panel of the corresponding ZK C3 controller, ZK C5 controller and ZK INBIO controller objects that are created on the basis of the AC ZK Teco parent object.

Note

The configuration of ZK Teco controllers will be considered on the example of the C3 controller. You can configure other controllers in the same way.

To configure a ZK Teco controller, do the following:

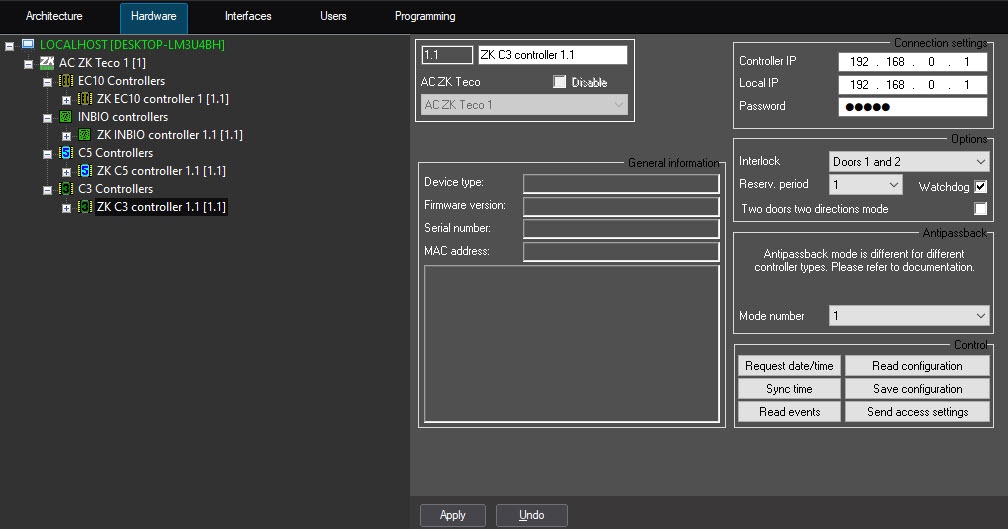

  1. Go to the settings panel of the corresponding ZK Teco controller..
  2. From the Interlock drop-down list, select a group of interlocked doors. Interlock is a two-cycle mode with a stop to check a person who enters. Interlock can be set for two or more locks belonging to one access controller.
    1. Disable—doors interlock function is disabled (default).
    2. Doors 1 and 2—doors 1 and 2 are interlocked.
    3. Doors 3 and 4—doors 3 and 4 are interlocked.
    4. Doors 1, 2 and 4—door 1, door 2 is interlocked with door 4.
    5. Doors 1 and 2, doors 3 and 4—door 1 is interlocked with door 2, door 3 is interlocked with door 4.

    6. Doors 1, 2, 3 and 4—door 1, door 2, door 3 is interlocked with door 4.

      Note

      To open one of the interlocked doors, other interlocked doors in the group must be closed. This means that only one door in a group of interlocked doors can be opened at a time.

  3. From the Reserv. period drop-down list, in the range from 1 to 24, select the time period in minutes after which the data will be automatically backed up. The default value is 1.

  4. The Watchdog checkbox is set by default. It enables the watchdog timer. This is a monitoring system that restarts the hardware in time to restore its functionality if a failure occurs. If the microcontroller port does not respond to the timer within a certain time or number of cycles determined in the program, a reset and restart command is sent to the device. To disable the mode, clear the checkbox.

  5. Set the Two doors two directions mode checkbox to enable two-directional access control for two doors.

  6. From the Mode number drop-down list, select the antipassback control mode. By default, this setting is disabled (Disabled). The antipassback control modes depend on the controller type (For details, see the manufacturer's documentation).

  7. Click the Apply button.

    Note

    After a successful connection with the controller, general information about the device will automatically be displayed in the corresponding area on the left side of the settings panel.
