You can create the GD Group object on the basis of the Galaxy Dimension Panel object. To configure the GD Group object, do the following:

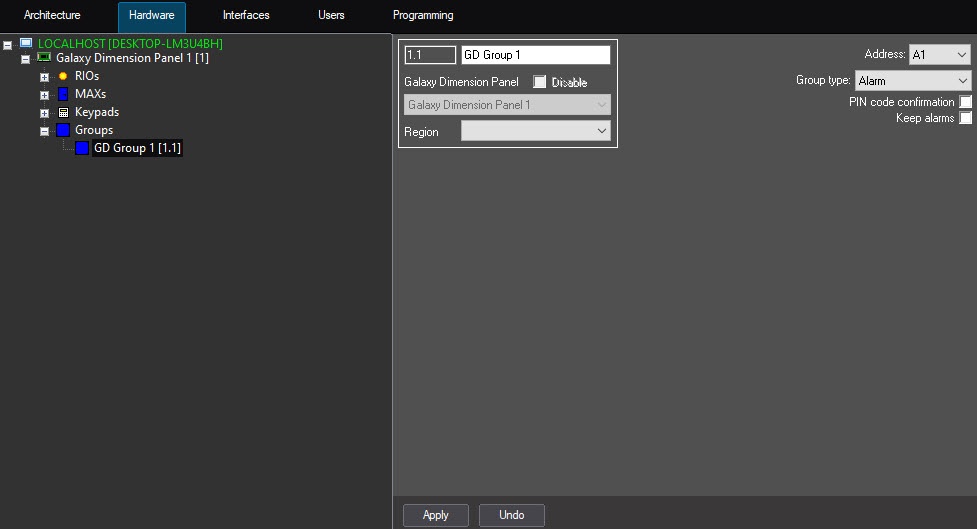

  1. Go to the settings panel of the GD Group object.
  2. From the Address drop-down list, select the address displayed for the specific group in the menu of the operator of the Galaxy Dimension Panel.
  3. From the Group type drop-down list, select the type of the group: Alarm, Alarm PL, Simple.
  4. Set the PIN code confirmation checkbox to confirm operations using a PIN code.
  5. Set the Keep alarms checkbox to store alarms until they are processed by the operator.
  6. Click the Apply button to save the changes.

Configuration of the Galaxy Dimension group is completed.
