Rules of system states change allow you to create new system states if a value of a property falls in a given range.

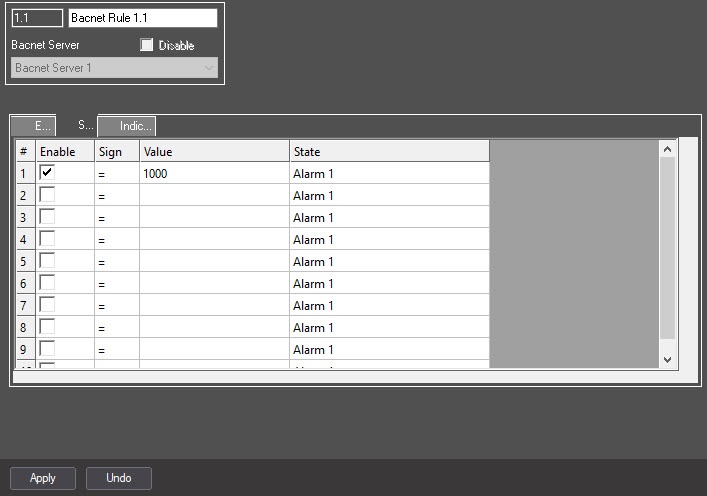

To configure these rules, set the following parameters on the States tab on the settings panel of the Bacnet Rule object:

  1. Set the Enable checkbox to activate the rule.
  2. From the drop-down list in the Sign column, select the sign that determines the range. The list of recognized signs differs for each supported data type, see the table in Configuring rules of event generation.
  3. In the Value column, enter the property value that limits the range. The value must match the formatting rules for the data type of the BACNet property, for which the rule is configured, see Configuring the BACnet Property.
  4. From the drop-down list in the State column, select a state that will be generated.
  5. Click the Apply button to save the changes.
