Configuring connection to the Axxon One Server

To configure connection to the Axxon One Server, do the following:

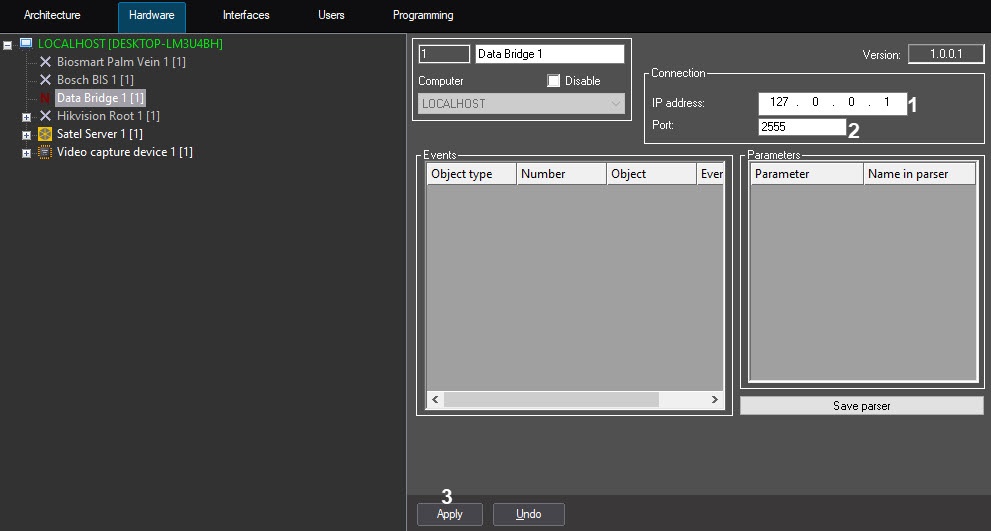

1. Go to the settings panel of the Data Bridge object, created on the basis of the Computer object on the Hardware tab of the System settings dialog window.
2. In the IP address field (1), enter the IP address of the Axxon One Server.

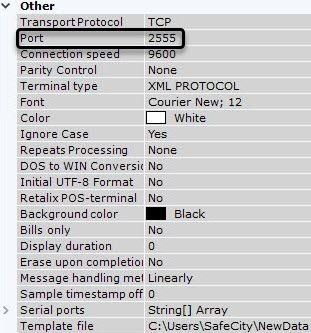

3. In the Port field (2), enter the port number specified in Axxon One when configuring the Event source object.

4. Click the Apply button (3) to save the changes.

When the connection to the Axxon One Server is set, there will be Connection set message in the Event Viewer in Axxon PSIM.

Connection to the Axxon One Server is now configured.
