You can connect external hardware to the BioSmart 4 controller. To configure interaction with external hardware, as well as configure the exit relay, go to the Ext. hardware and exit relay tab on the settings panel of the BioSmart 4 controller.

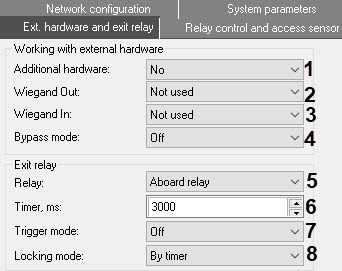

Configuring working with external hardware

In the corresponding parameter group, configure working with external hardware:

  1. From the Additional hardware drop-down list (1), select the type of hardware connected to the BioSmart 4 controller:
    1. No—additional hardware isn’t connected.
    2. BioSmart RCU—the BioSmart relay control unit (RCU) is connected to the controller.
    3. CK-24—key dispenser is connected to the controller.
    4. Kronwerk—controller works in the integration mode with the Kronwerk ACS under the Kronwerk software control.
    5. BioSmart BOX—the BioSmart BOX cell monitoring hardware is connected to the controller.
    6. Perco—controller works in the integration mode with the Perco ACS under the Perco software control.
  2. From the Wiegand Out drop-down list (2), select the protocol type of the Wiegand output interface of the BioSmart 4 controller:
    1. Not used—the Wiegand output interface of the BioSmart 4 controller isn’t used.
    2. Wiegand-26 (W/P)—hardware that uses the Wiegand 26 protocol with parity check bits is connected to the Wiegand output of the BioSmart 4 controller.
    3. Wiegand-32—hardware that uses the Wiegand 32 protocol is connected to the Wiegand output of the BioSmart 4 controller.
  3. From the Wiegand In drop-down list (3), select the protocol type of the Wiegand input interface of the BioSmart 4 controller:
    1. Not used—the Wiegand input interface of the BioSmart 4 controller isn’t used.
    2. Wiegand-26—reader that uses the Wiegand 26 protocol is connected to the Wiegand input of the BioSmart 4 controller.
    3. Wiegand-26 (W/P)—reader that uses the Wiegand 26 protocol with parity check bits is connected to the Wiegand input of the BioSmart 4 controller.
    4. Wiegand-32—reader that uses the Wiegand 32 protocol is connected to the Wiegand input of the BioSmart 4 controller.
  4. If you want to enable the bypass mode, select the On value from the Bypass mode drop-down list (4). In this case, the access card not registered in the ACFA PSIM database will be available for transmission to the external ACS controller via the Wiegand output of the Biosmart 4 controller. The default value is Off.

Configuring working with exit relay

In the corresponding parameter group, configure working with exit relay:

  1. From the Relay drop-down list (5), select the type of relay that will trigger at access: Aboard relay, Relay #1 RCU, Relay #2 RCU.

  2. In the Timer, ms field (6), enter the time in milliseconds of the active state of the relay after clicking the relay control button. The default value is 3000.

  3. To enable the trigger mode, from the Trigger mode drop-down list (7), select the On value. In this case, the relay will change its state each time the access is successful. When the controller power is on after an emergency shutdown, the relay will return to the state it was in when the power was off. The default value is Off.

  4. If you select the Manual mode from the Locking mode drop-down list (8), locking is enabled when the Open button is enabled. Locking is disabled on the Close command.

    By timer—locking is enabled when the Open button is enabled. Locking is disabled after the time specified in the Timer, ms field (see step 2 of configuring working with exit relay).
  5. Click the Apply  button to save the changes.
