You can configure the RFID reader of the BioSmart Prox-E controller on the settings panel of the RFID reader object created on the basis of the BioSmart Prox-E object.

General settings

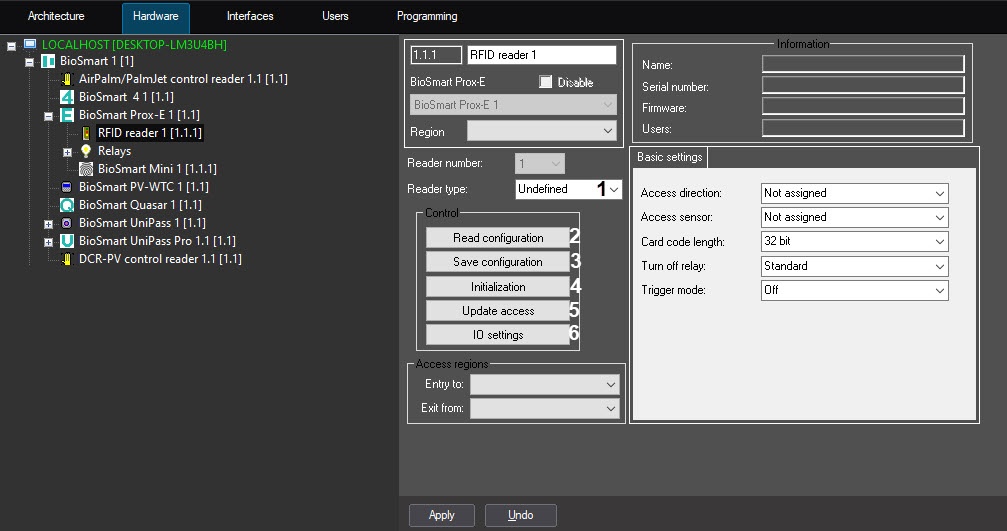

  1. From the Reader type drop-down list (1), select the reader type: Wiegand Converter, BioSmart Mini, RFID, Magnetic, Wiegand 26, Wiegand 32. The default value is Undefined.

    Note

    The Reader number parameter is filled in automatically.

Control

  1. Click the Read configuration button (2) to read the configuration from the BioSmart Prox-E controller.
  2. Click the Save configuration button (3) to save the configuration to the BioSmart Prox-E controller.
  3. Click the Initialization button (4) to delete all data on users, access cards, palm vein templates, and time schedules.
  4. Click the Update access button (5) to write access data (palm vein templates, access cards, user time schedules, and so on) to the controller.
  5. Click the IO settings button (6), if you want to configure operating scenarios for the actuating devices of the BioSmart Prox-E controller for certain events.

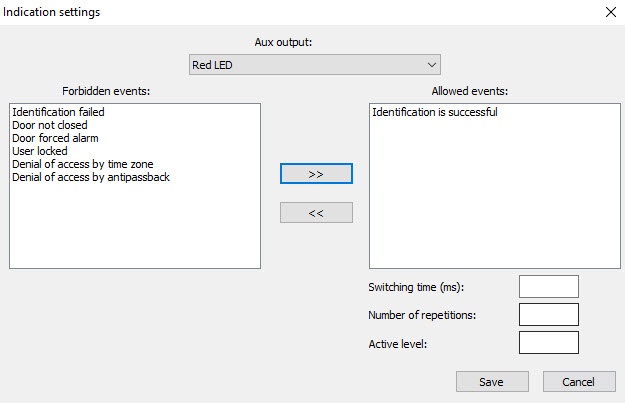

    As a result, the Indication settings window will open, where you can configure the operating scenarios (see Configuring operating scenarios for actuating devices of the BioSmart 4 controller).

The Basic settings tab

  1. Go to the Basic settings tab.

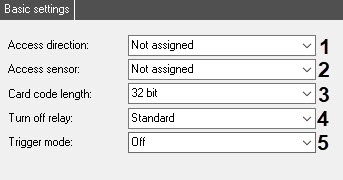

  2. From the Access direction drop-down list (1), select the Input, Output or Not assigned (default) value.
  3. From the Access sensor drop-down list (2), select a discrete input of the controller or the BioSmart RCU, to which the access sensor will be connected: Input #1, Input #2, Input #3, Input #4, Input #1 RCU, Input #2 RCU, Input #3 RCU, Input #4 RCU.
  4. From the Card code length drop-down list (3), select the length of the RFID card code that is read by the embedded card reader: 32 bit (default) or 24 bit.
  5. From the Turn off relay drop-down list (4), select the operating mode of locking the actuating device after the employee's access:
    1. Standard (default)—locking by timer for four seconds.
    2. On door opening—locking happens on door opening/at the beginning of turnstile rotation.
    3. On door closing—locking happens on door closing/at the end of turnstile rotation.
  6. From the Trigger mode drop-down list (5), select the On value to enable the trigger mode, so that the relay changes its state every time the access is successful. The default value is Off.
  7. Click the Apply  button to save the changes.
