Configuring the ActiveMQ Broker parent object

To work with the ActiveMQ Broker integration module, you must install and configure the AxACFA feature. For more details, see Connecting and configuring the AxACFA feature.

The ActiveMQ broker parent object is created on the basis of the Axacfa object. To configure it, do the following:

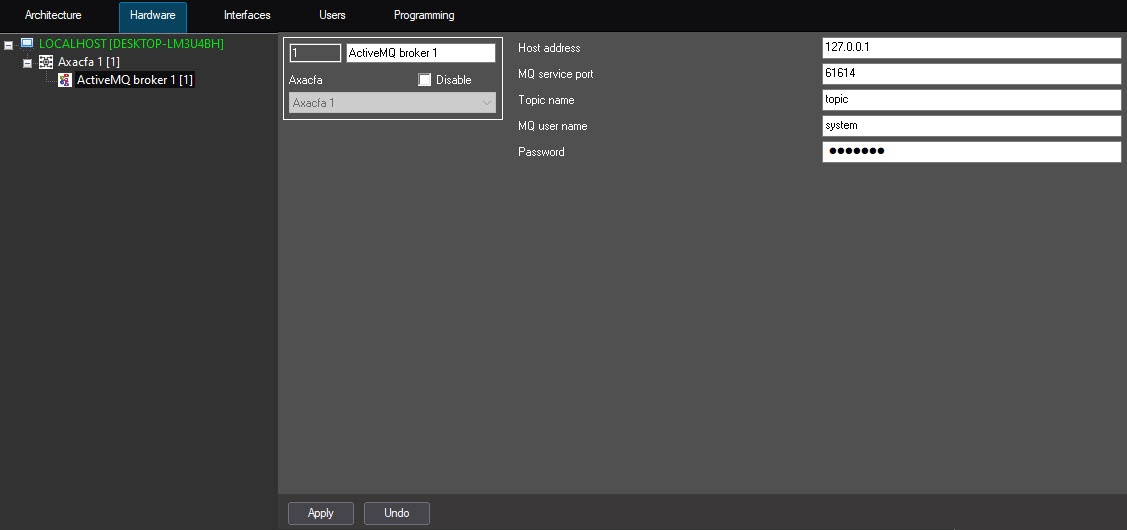

1. Go to the ActiveMQ broker object settings panel.



2. In the Host address field, specify the IP address of the computer that will receive messages from the device connected via the broker.

3. In the MQ service port field, specify the port number of the computer used for the message broker operation.

4. In the Topic name field, specify the name of the topic used to group messages.

5. In the MQ user name field, specify the ActiveMQ user name.

6. In the Password field, specify the ActiveMQ password.

7. Click Apply to save the settings.


The ActiveMQ broker parent object is configured.
