Managing the configuration of the BioSmart Prox-E controller

To manage the configuration of the BioSmart Prox-E controller, do the following:

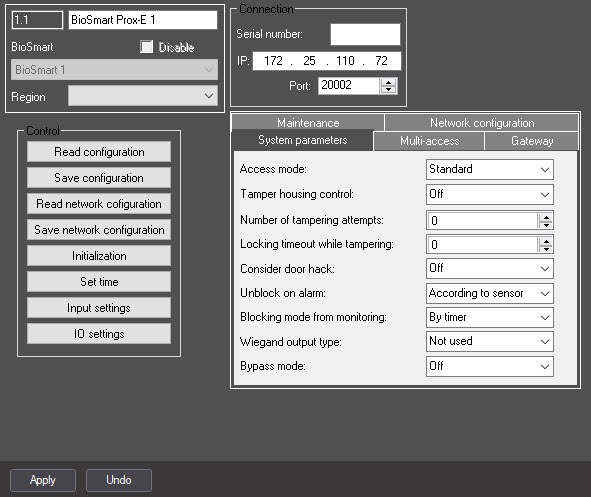

1. Go to the settings panel of the BioSmart Prox-E object that is created on the basis of the BioSmart object.

2. Click the Read configuration button to read the configuration of the controller.
3. Click the Save configuration button to save the configuration changes to the controller.
4. Click the Read network configuration button to read the data of the system network operating mode from the controller.
5. Click the Save network configuration button to save the changes of the system network operating mode to the controller.
6. Click the Initialization button to delete all data on users, access cards, palm vein templates, and time schedules.


   Note

   BioSmart Prox-E controllers support 255 time schedules, that is, the id of the time schedule must be in the range 1-255.

7. Click the Set time button to synchronize the time of the controller and the ACFA PSIM Server to which the controller is connected.
8. Click the Input settings button.

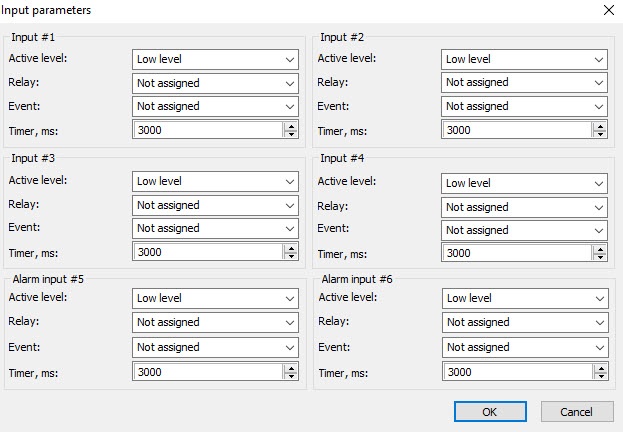

   1. In the Input parameters window, configure the controller input parameters:

   2. Click the OK button to save the changes.
9. Click the IO settings button.

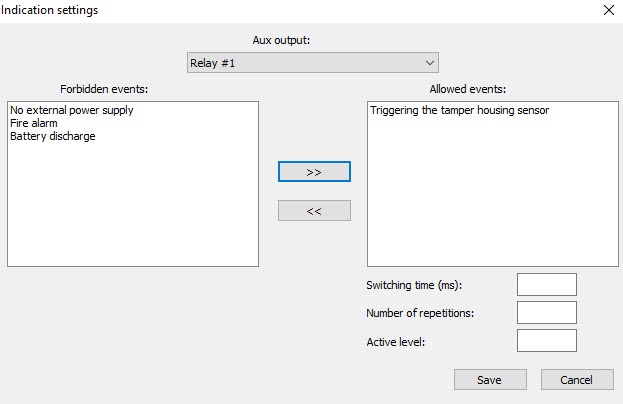

   1. In the Indication settings window, configure the indication settings of the aux outputs of the controller:

   2. Click the Save button to save the changes.
10. Click the Apply button to save the changes.

Managing the configuration of the BioSmart Prox-E controllers is complete.
