Configuring the Hikvision IP Receiver Pro parent object

To work with the Hikvision IP Receiver Pro integration module, you must install and configure the AxACFA feature. For more details, see Connecting and configuring the AxACFA feature.

To configure the Hikvision IP Receiver Pro parent object, do the following:

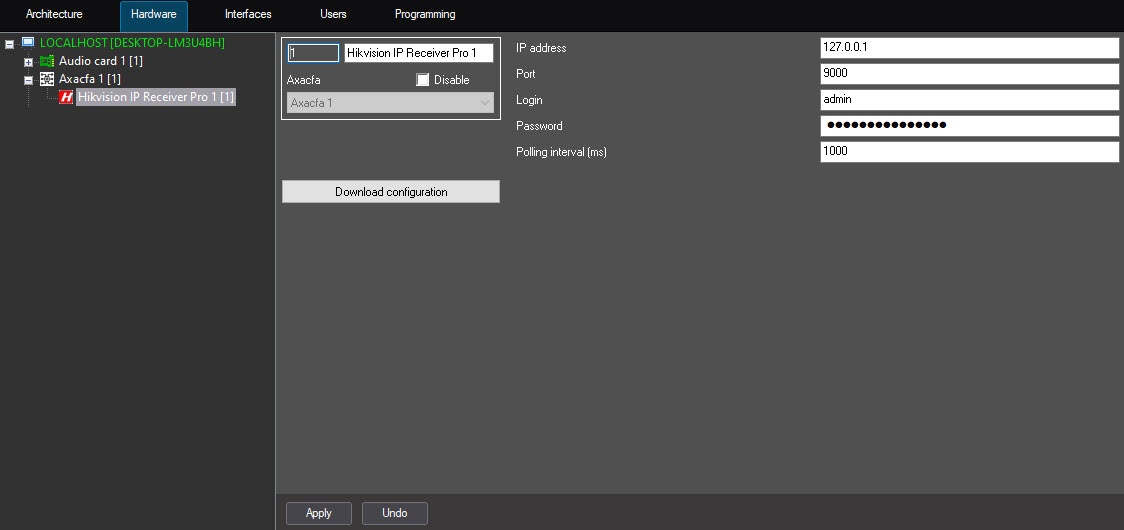

1. Create the Hikvision IP Receiver Pro parent object on the basis of the Axacfa object on the Hardware tab of the System settings window.


2. In the IP address field, enter the IP address of the computer with the installed Hik IP Receiver Pro manufacturer's software.
3. In the Port field, enter the port number to work with the Hik IP Receiver Pro manufacturer's software.
4. In the Login field, enter the user login to log in to the Hik IP Receiver Pro manufacturer's software.
5. In the Password field, enter the user password to log in to the Hik IP Receiver Pro manufacturer's software.
6. In the Polling interval (ms) field, enter the period of polling of the Hikvision IP Receiver Pro device about new alarm events in milliseconds. The default value is 1000.
7. Click the Apply button to save the settings.
8. Click the Download configuration button to download the configuration.
   As a result, an object tree is built:



Configuration of the Hikvision IP Receiver Pro parent object is complete.
