Configuring the controller of the Satel GPRS-A integration module

To configure the controller of the Satel GPRS-A integration module, do the following:

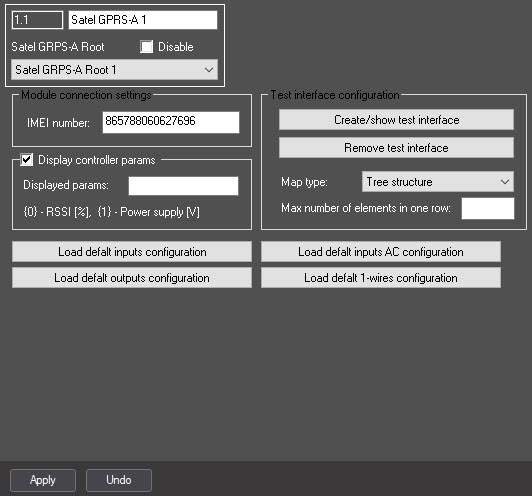

1. Go to the settings panel of the required controller.

2. In the IMEI number field, enter the IMEI number to connect to the Satel GPRS-A integration module. It is a unique number by which the controller is recognized.
3. Set the Display controller params checkbox to display controller parameters on the map.
4. In the Displayed params field, enter the displayed text.
5. Click the Create/show test interface button to create a map containing the controller and all I/O child objects of this controller.
6. Click the Remove test interface button to remove the created test interface if it exists.
7. From the Map type drop-down list, select the type of arrangement of objects on the test interface map. You can choose between alignment of objects in a line or in a parent-child tree.
8. In the Max number of elements in one row field, enter the maximum number of elements on the map that can be in one row.
9. Click the Load default inputs configuration button to create default inputs with a basic configuration.
10. Click the Load default inputs AC configuration button to create default inputs AC with a basic configuration.
11. Click the Load default outputs configuration button to create default outputs with a basic configuration.
12. Click the Load default 1-wires configuration button to create default 1-wires with a basic configuration.
13. Click the Apply button to save the settings.

Configuration of the controller of the Satel GPRS-A integration module is complete.
