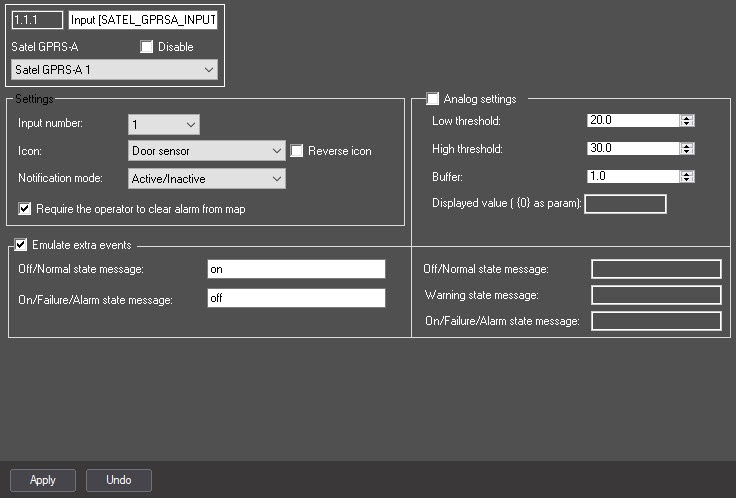

To configure the input of the Satel GPRS-A integration module, do the following:

  1. Go to the settings panel of the required input.
  2. From the Input number drop-down list, select the number of the input.
  3. From the Icon drop-down list, select the icon of the object to be displayed on the map.
  4. Set the Reverse icon checkbox to reverse the logic of the displayed states on the map.
  5. From the Notification mode drop-down list, select the type of object states displayed on the map: Active/Inactive, Normal/Failure, or Normal/Alarm.
  6. Set the Require the operator to clear alarm from map checkbox to select whether the operator will have to delete the alarm message on the map after the transition from Alarm/Failure to Normal state.
  7. In the Low threshold field, enter the lower value limit. The module triggers state changes if the value falls below the threshold.
  8. In the High threshold field, enter the upper value limit. The module triggers alarm state changes.
  9. In the Buffer field, enter the value that accumulates changes or inputs to prevent constant state fluctuations, releasing them only when a specific threshold is reached.
  10. In the Displayed value ( {0} as param) field, enter the sensor value displayed on the map.
  11. Set the Emulate extra events checkbox to generate additional events for an object when its state changes.
  12. In the Off/Normal state message field, enter the event description displayed in the Event Viewer for the Off/Normal state.
  13. In the On/Failure/Alarm state message field, enter the event description displayed in the Event Viewer for the On/Failure/Alarm state.
  14. Click the Apply button to save the settings.

Configuration of the input of the Satel GPRS-A integration module is complete.
