Configuring the connection of the Protege integration module

To work with the Protege integration module, you must install and configure the AxACFA feature. For more details, see Connecting and configuring the AxACFA feature.

To configure the connection of the Protege integration module, do the following:

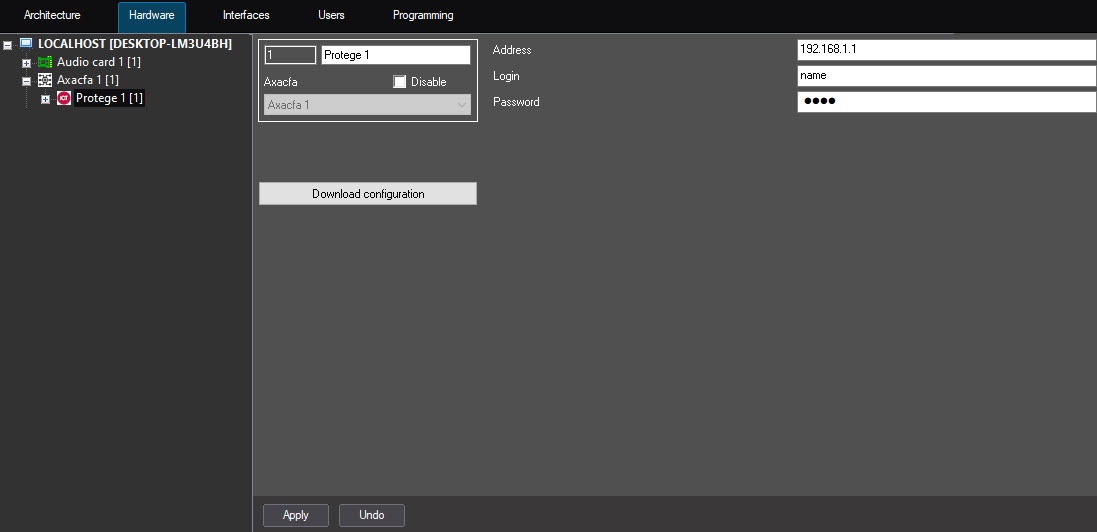

1. Create the Protege parent object on the basis of the Axacfa object on the Hardware tab of the System settings window.


2. In the Address field, specify the IP address to connect to the Protege GX manufacturer's software.
3. In the Login field, specify the name of the user to authorize in the Protege GX manufacturer's software.
4. In the Password field, specify the user password to authorize in the Protege GX manufacturer's software.
5. Click the Apply button to save the settings.
6. Click the Download configuration button to download the configuration and build the hardware tree. A hardware tree is built:



Configuring the connection of the Protege integration module is complete.
