Configuring the APACS (AxACFA) parent object

To work with the APACS (AxACFA) integration module, you must install and configure the AxACFA feature. For more details, see Connecting and configuring the AxACFA feature.

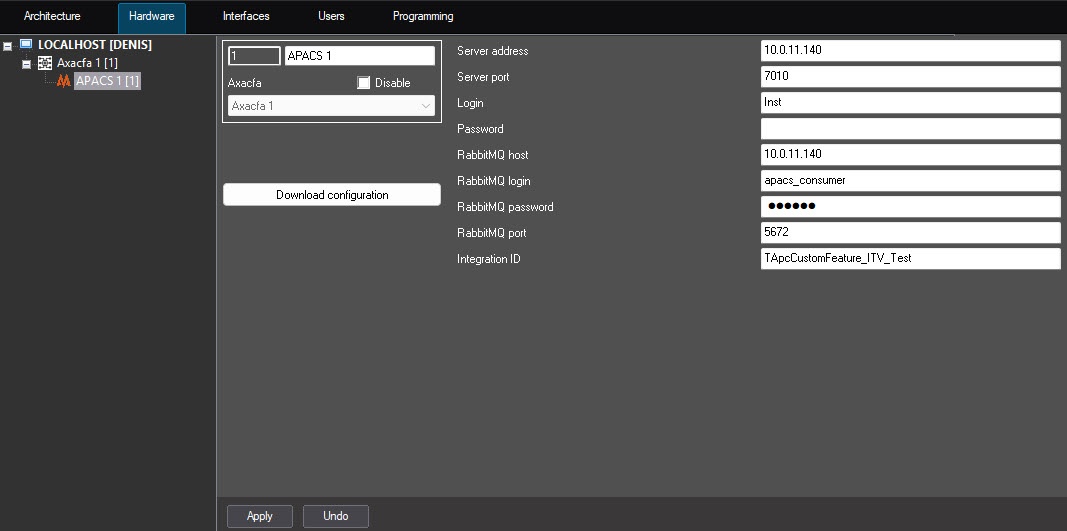

To configure the APACS (AxACFA) parent object, do the following:

1. Create the APACS parent object on the basis of the Axacfa object on the Hardware tab of the System settings dialog window.

2. In the Server address field, enter the IP address of the APACS server.
3. In the Server port field, enter the port number for connecting to the APACS server. The default value is 7010.
4. In the Login field, enter the login of the APACS server user.
5. In the Password field, enter the password of the APACS server user, if the password was set during server installation.
6. In the RabbitMQ host field, enter the IP address of the RabbitMQ host.
7. In the RabbitMQ login field, enter the login of the RabbitMQ server user.
8. In the RabbitMQ password field, enter the password of the RabbitMQ user.
9. In the RabbitMQ port field, enter the port number for connecting to the RabbitMQ server. The default value is 5672.
10. In the Integration ID field, enter the unique license ID.
11. Click the Apply button to save the changes.
12. To download the configuration and automatically build the hardware tree, click the Download configuration button.

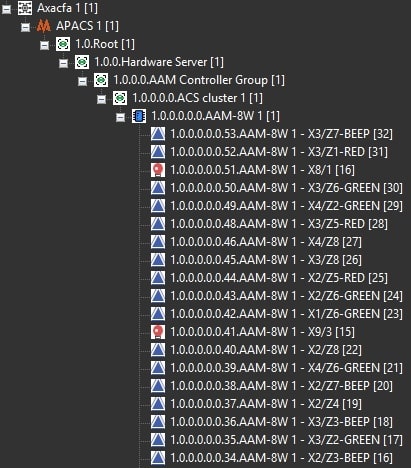

    A hardware tree will be built:


Configuration of the parent object of the APACS (AxACFA) integration module is complete.
