An access level is created as follows:

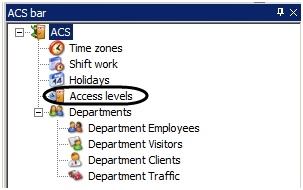

  1. Go to the Access level section of the ACS bar.

    The information pane will show previously created access levels and the access level bar will open.

  2. Click the New button (1).

    Note:

    This action can also be performed using the information pane's context menu. Right-click on any point in the information pane to bring up the context menu and then select the New menu item.
  3. In the Name field, enter the name of the access level (2).

  4. In the Access point column of the table, select the reader through which user access will take place (3).

    Note:

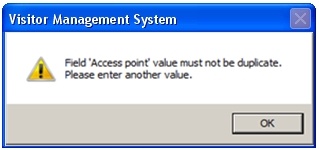

    Each reader can only be used once. An error message will appear if you attempt to use a reader multiple times.
  5. In the table's Time zone column, select the time zone (or shift schedule) in which access will take place through the access point (4).
  6. Check the box in the table's Card transfer column to forward access cards to the controller after an access card has been presented by a user (5).
  7. Check the box in the table's Arm column to arm the access point after an access card has been presented by a user (5).
  8. Check the box in the table's Disarm column to disarm the access point after an access card has been presented by a user (5).
  9. Click Save to save the access level (6).

This completes the process of creating an access level.
