Configuration of AR-716E Door object

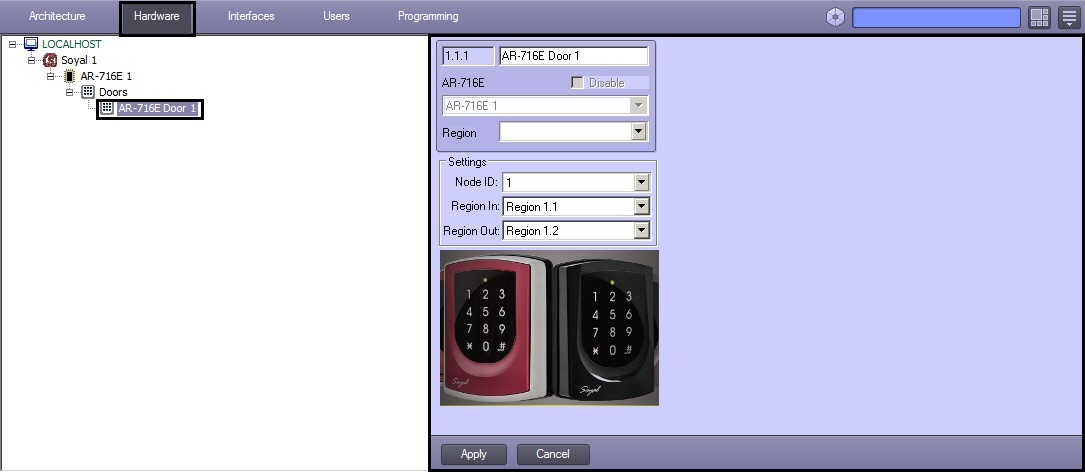

Configuration of AR-716E Door object is carried out on setting panel of corresponding object. This object is created on the basis of AR-716E object on Hardware tab of System settings dialog box.

To configure the AR-716E door do the following:

1. Go to the AR-716E Door object's settings panel.

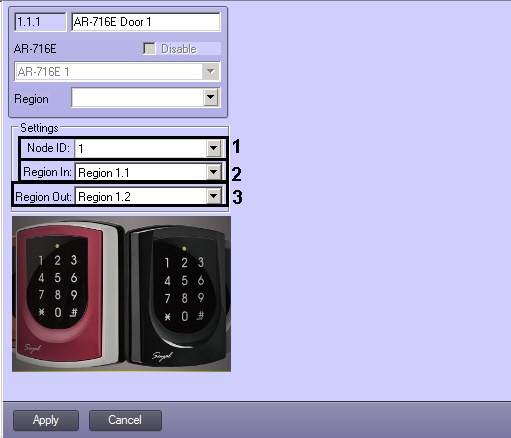

2. From the Node ID drop-down list select the ID of AR-716E Door object (1).
3. From the Region In drop-down list select the Area located in the site of exit through this reader (2).
4. From the Region Out drop-down list select the Area located in the site of entry through this reader (3).
5. To save changes, click the Apply button.

This completes the configuration of the AR-716E Door object.
