Configuration of the AR-716E Input

Configuration of AR-716E Input object is carried out on setting panel of corresponding object. This object is created on the basis of AR-716E object on Hardware tab of System settings dialog box.

To configure the AR-716E input do the following:

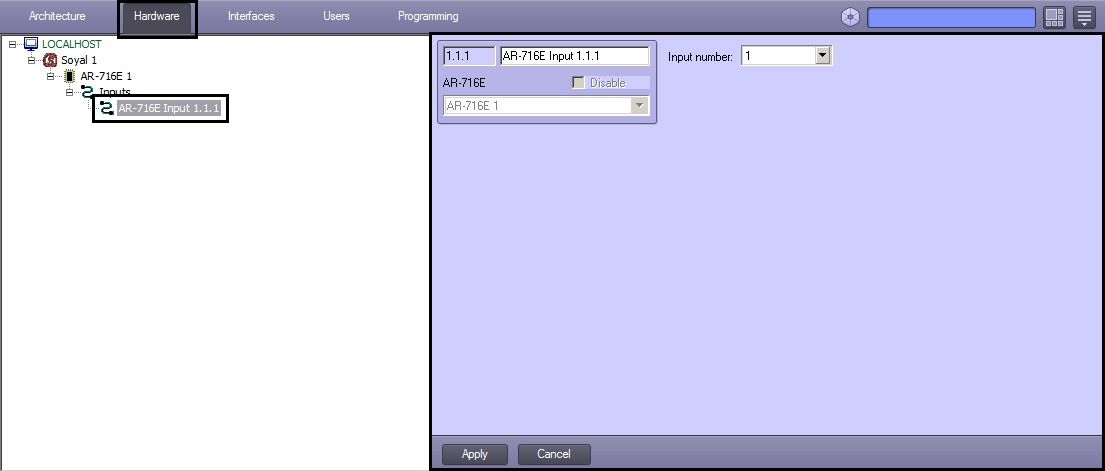

1. Go to the AR-716E Input object's settings panel.

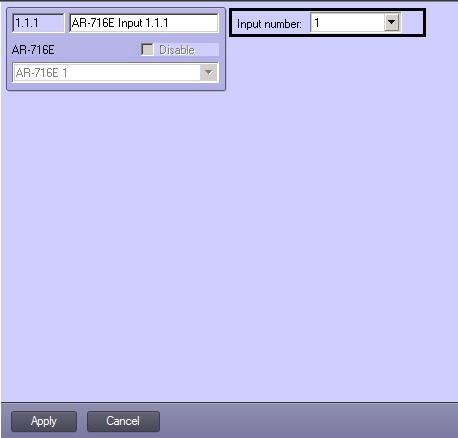

2. From the Input number drop-down list select the number of AR-716E Input object (1).
3. To save changes, click the Apply button.

This completes the configuration of the AR-716E Input object.
