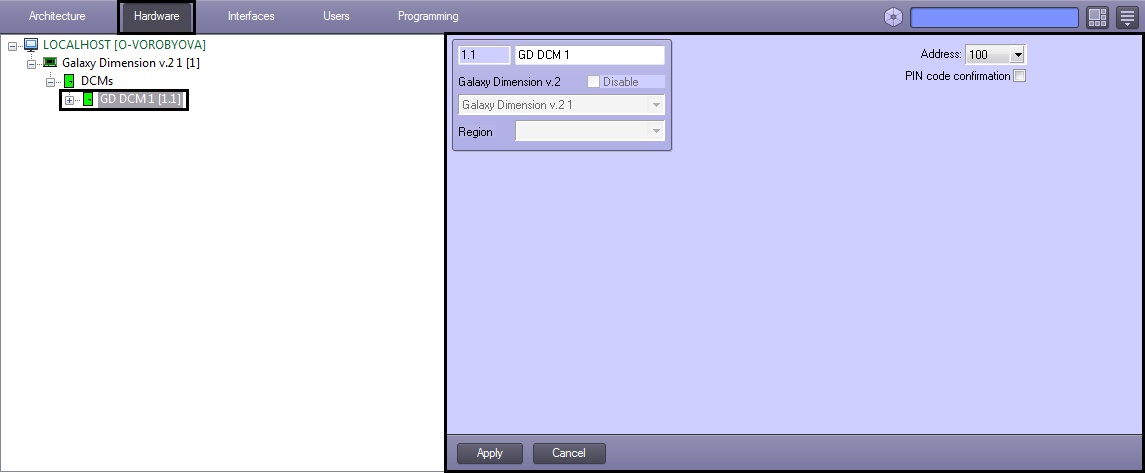

Door control modules of the Galaxy Dimension v.2 control panel are configured in the settings panel of the GD DCM object. This object is created from the Galaxy Dimension v.2 object on the Hardware tab of the System settings dialog box.

The Galaxy Dimension v.2 control modules are configured as follows:

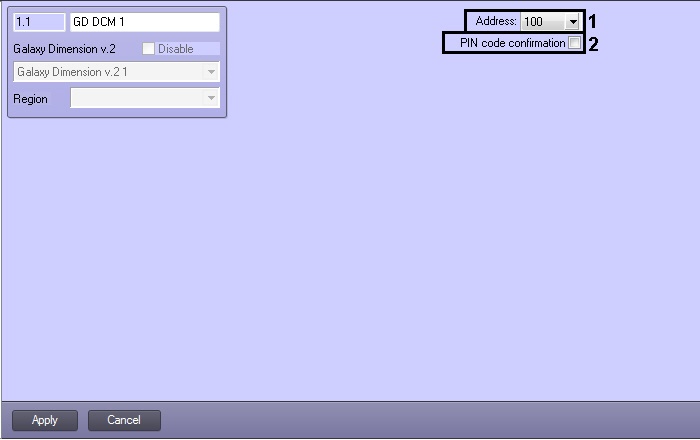

  1. Go to the settings panel of the GD DCM object.
  2. From the Address drop-down list select the address displayed for the specific control module into the operator’s menu of the Galaxy Dimension v.2 control panel (1).
  3. Set the PIN code confirmation checkbox if it's required to confirm operations using PIN code (2).
  4. Click Apply button to save changes.
  5. Repeat steps 1-4 for all control modules of the panel.

Configuration of the Galaxy Dimension v.2 control modules is completed.
