Setting up the Virdi Partition

The Virdi Partition is configured as follows:

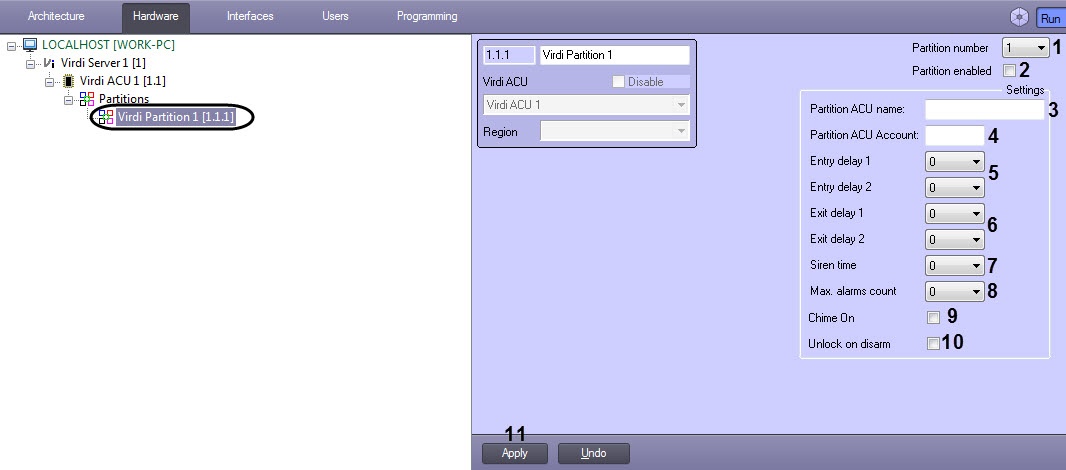

1. Go to the settings panel of the Virdi Partition object which is created on the basis of the Virdi ACU object.

2. From the Partition number drop-down list (1), select the input number from 1 to 4.
3. Set the Partition enabled checkbox (2) to activate this partition.
4. In the Partition ACU name field (3), enter the partition name (maximum 16 characters).
5. In the Partition ACU Account field (4), enter the partition account number in the form of 4 hexadecimal digits. By default, the account number matches the controller ID.
6. From the Entry delay 1 and Entry delay 2 drop-down lists (5), select the time delay in seconds for the entry: from 0 to 255.

7. From the Exit delay 1 and Exit delay 2 drop-down lists (6), select the time delay in seconds for the exit: from 0 to 255.

   Notes

   • Entry delay 1 and Exit delay 1 affect all zones of EXIT1 type.
   • Entry delay 2 and Exit delay 2 affect all zones of EXIT2 type.
8. From the Siren time drop-down list (7), select the duration of the siren signal in seconds when an alarm occurs in the alarm section: from 0 to 255.
9. From the Max. alarms count drop-down list (8) select the maximum number of the siren repetitions when an alarm occurs in the alarm section: from 0 to 255.
10. Set the Chime On checkbox (9) if it is necessary for the reader to make 2 short beeps when opening a zone such as EXIT1, EXIT2 or INSTANT and the partitions assigned to them. This can be used as an indicator of door opening, but not as an alarm indicator.
11. Set the Unlock on disarm checkbox (10) if it is necessary for the doors belonging to this partition to be automatically unlocked when the partition is disarmed. Doors will remain open until the partition is armed again.
12. Click the Apply button (11) to apply the settings.

The Virdi Partition is now configured.
