After the connection is established, please use the following procedure to read objects hierarchy from OnGuard to ACFA Intellect:

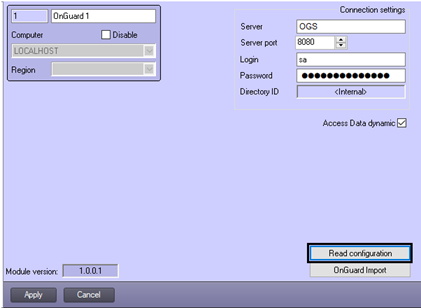

  1. Go to the OnGuard object settings panel.
  2. Click Read configuration.

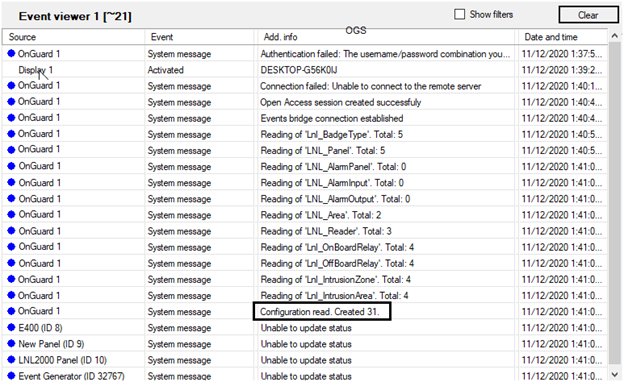

As a result, the Configuration read. Created N message appears in the Event Viewer.

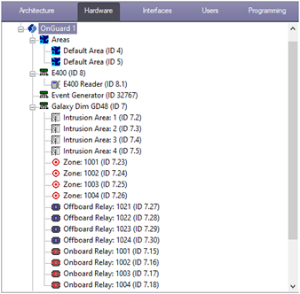

N is the number of objects created under the OnGuard object on the Hardware tab.

The names of these objects correspond to the objects in OnGuard software.

Note

Do not create OnGuard integration module objects manually except for the head object. This is useless since the manually created objects do not correspond to any objects in OnGuard software. However, if you misconfigured e.g. the objects IDs in ACFA Intellect, it may cause improper system operation.
