Zone groups allow you to combine zones (AIO and/or AIM inputs and/or status inputs), mask and unmask the entire group.

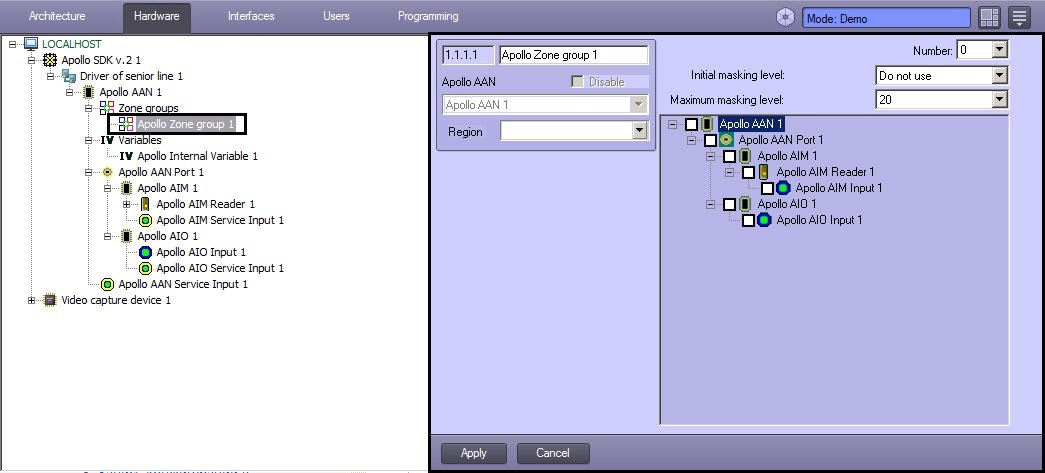

Zone group configuration is performed on the Apollo Zone group object settings panel. The object is created under Apollo AAN object on the Hardware tab of the System Settings dialog box.

Zone group configuration is performed as follows:

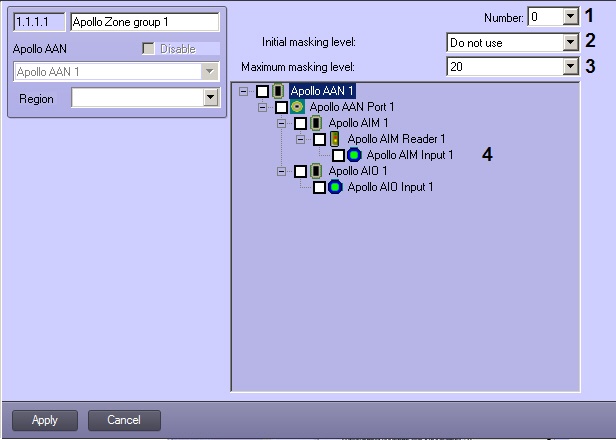

  1. Go to the Apollo Zone group object settings panel.
  2. Select zone group ID in the controller from the Number drop-down list (1).
  3. From the Initial masking level drop-down list (2), select the initial masking level. If the masking level is not zero, then the group is considered to be masked, if zero – the group is unmasked.
  4. From the Maximum masking level drop-down list (3), select the maximum masking level.
  5. Set checkboxes next to objects to be included in the group (4).
  6. Click Apply.
  7. To save the changes to the controller, write configuration to hardware.

Zone group configuration is completed.
