The general parameters of the internal variable are set in the following order:

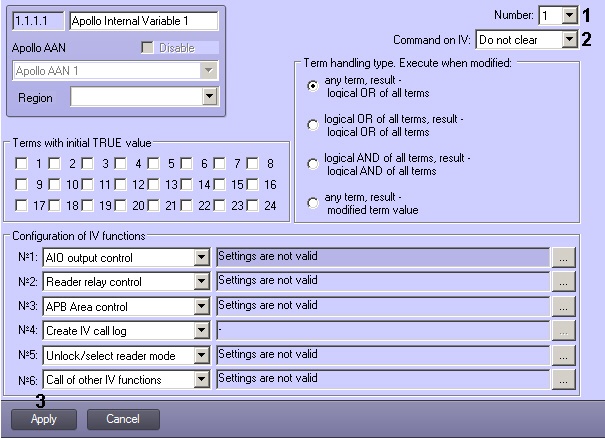

  1. Go to the Apollo Internal Variable object settings panel.
  2. In the Number drop-down list select the internal variable number in the controller (1).
  3. In the Command on IV drop-down list select command for internal variable: Clear or Do not clear (2).
  4. Click Apply (3).
  5. To save the changes to the controller, write configuration to hardware.

The general parameters of the internal variable are set.
