Configuring the Punktir-C line controller

After connecting the Punktir-C software to ACFA Intellect, the Processor object will be automatically created under the Security equipment object, which corresponds to the CP-C device.

To configure the Punktir-C line controller, do the following

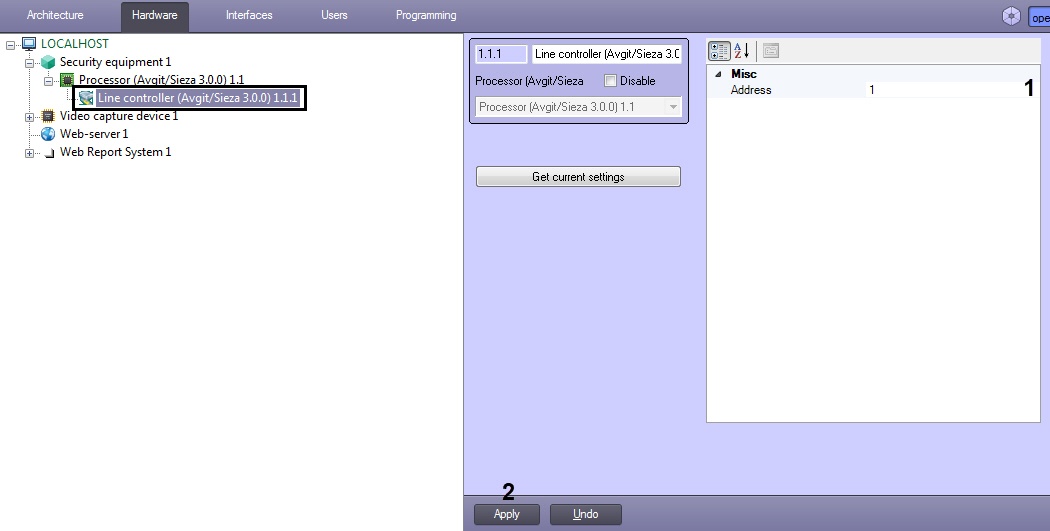

1. On the basis of the Processor object, create a Line controller object that corresponds to the LC-C device, and go to its settings panel.

2. In the Address field (1), enter the device address in the system configuration.
3. Click the Apply button (2) to save the changes.
