Setting up the TREZOR-B04 and TREZOR-R controller is performed in the following way:

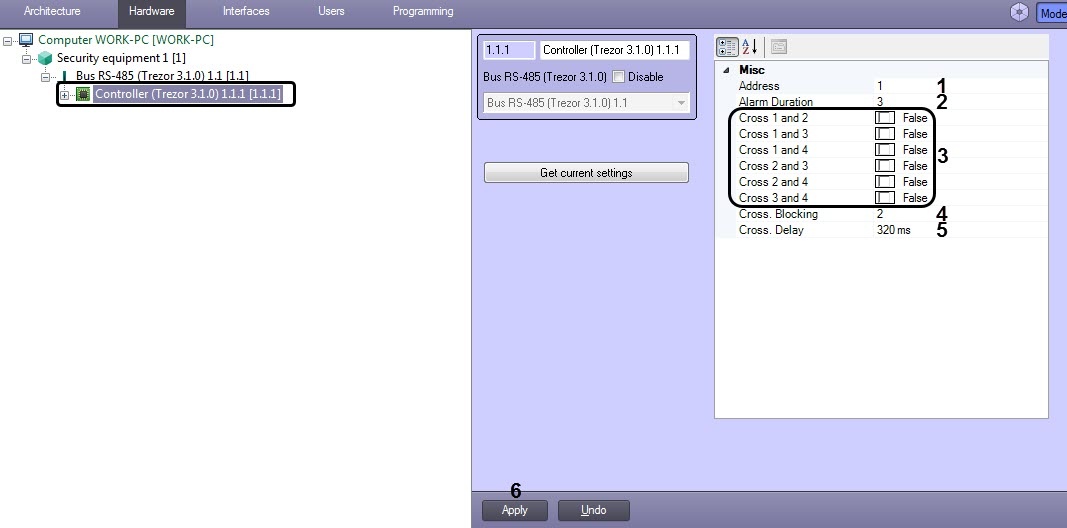

  1. Go to the Controller (Trezor) object settings created on the base of the Bus RS-485 (Trezor).

  2. Specify the connected controller address for the Address parameter (1) within the limits of 0 to 255.

    Note

    The Address with a ‘0’ value (or ‘00000000’ in binary code) is meant for executing utility functions.

    The controller address is set up with the eight-bit switch on the controller circuit plate.

  3. For the Alarm Duration parameter (2), specify the duration of the alarm signal (relay opening time) in the range from 1 to 5 seconds.

  4. Specify the True value in the area (3) to enable the interchannel signal processing for selected channels. The False value disables the interchannel signal processing.

    Note

    This option allows to logically combine the initially independent detection channels and lock alarm signals in case of their time correlation on marked channels.  Cross 1 and 2 comply with channel combining 1 and 2, Cross 1 and 3 comply with channel combining 1 and 3 and so on.

  5. For the Cross. Blocking parameter (4), specify the required time (in seconds) of impulse blocking time on specified channel crosses (for those where the True value is enabled) from the authorized bandwidth of 1 to 10 seconds .

  6. For the Cross. Delay parameter (5), specify the required time (in milliseconds) of maximum delay between the impulses (on specified channel crosses) which are blocked from the authorized bandwidth of 80 to 520 milliseconds.

    Note

    The Cross. Blocking and Cross. Delay values are specified empirically in the result of experiments and interference environment monitoring on the guarded object.

  7. Click Apply (6).

The TREZOR-B04 and TREZOR-R controller setting has been finished.
