The Regions and areas tab allows to perform Emergency Monitoring.

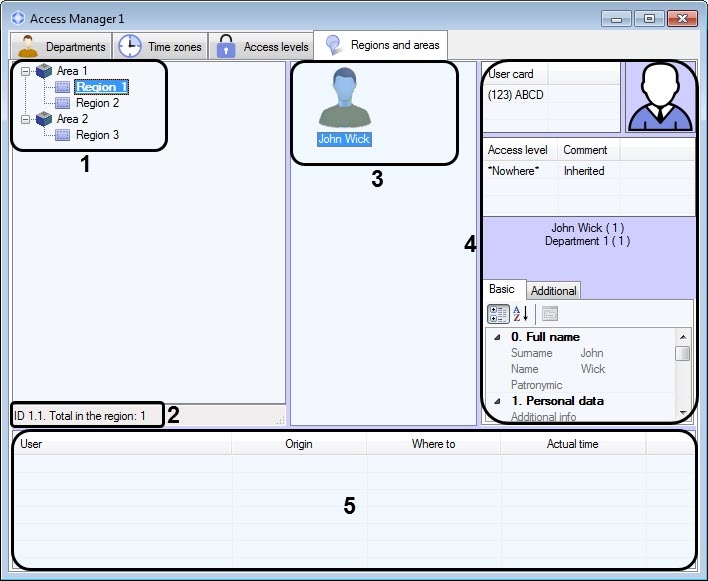

Description of Regions and areas tab elements is given in the table.

No.

Element

Description

1

Areas and regions tree

Hierarchy structure of created areas and regions in the system – see Creating, editing and deleting Area and Region objects

2

Information on the selected area or region

ID of the area/region and the current number of people in it.

3

The list of users in the region

The list of users who are currently located in the region.

4

User parameters

See the Departments tab section.

5

Passes log

Displaying information on users' passages in real time.
