To configure Rosslare connection through TCP/IP do the following:

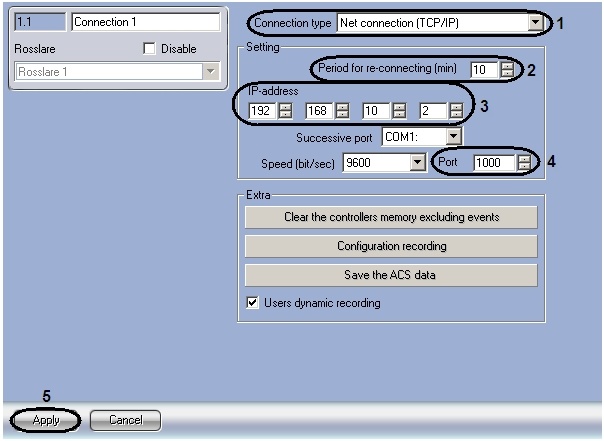

  1. Go to the setting panel of the Connection object.
  2. From the Connection type dropdown list select the connection through TCI/IP (1).
  3. In the Period for re-connecting (min) field using up-down keys set the time (in minutes) during which the attempts to re-connect with Intellect Server will be made (2).
  4. In the IP-address field using up-down keys set the IP-address of Rosslare connection (3).
  5. In the Port field using up-down keys set the number of Rosslare connection port (4).
  6. To save changes click Apply (5).

Configuration of Rosslare connection through TCP/IP is completed.
