ATM-Intellect Workstation supports simultaneous operations with objects via the TCP/IP protocol and the RS232 protocol.

Setting up a connection is performed as follows:

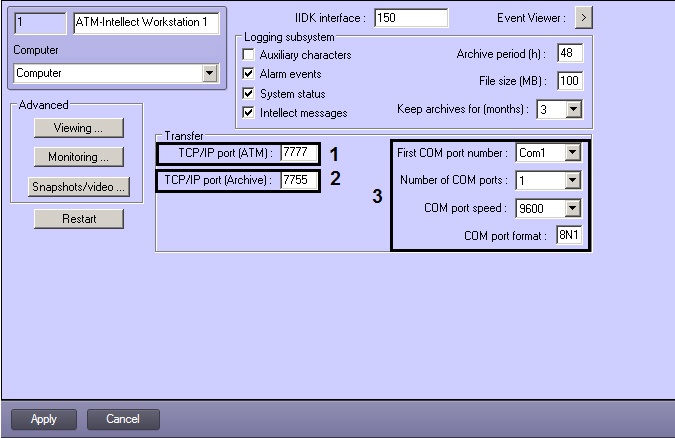

  1. Go to the ATM-Intellect Workstation object’s setting panel.
  2. Set up TCP/IP connection:
    1. In the TCP/IP port (ATM) field enter the TCP/IP port for communication with remote objects (1).
    2. In the TCP/IP port (Archive) field enter the TCP/IP port for communication with the module Search in archive (2).
  3. For operations via the RS232 protocol, the following parameters are configured: First COM port number, Number of COM ports, COM port speed, COM port format (3).
  4. Press Apply.

Setting up the connection is completed.
