The control panel allows evaluating the current status of video surveillance components at a glance.

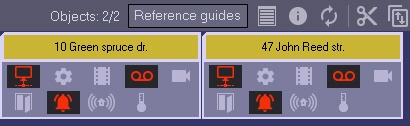

Each object corresponds to a rectangle that contains an object ID area (in the upper part) and a customizable number of clickable alarm indicator badges, which are grouped based on source type:

  1. Communications channel
  2. Device
  3. Video management  software
  4. Storage size
  5. Cameras
  6. Access control systems
  7. Fire and security alarms
  8. Detectors
  9. Thermal sensors

If the Owner panel is enabled (see Configuring the ATM Monitoring object section of Administrator's Guide), then only the objects that belong to the selected owner are displayed on the Control Panel.

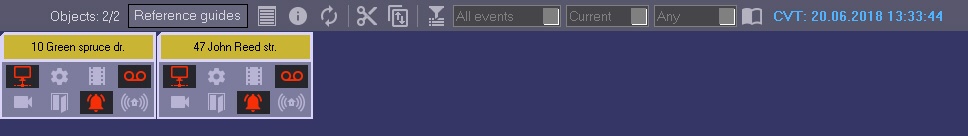

Depending on the configuration of the ATM Monitoring object in the Interfaces tab, the number of alarm groups shown can be changed to between 4 and 9.

Configuring of the ATM Monitoring interface object is described in the ATM-Intellect. Administrator's guide.

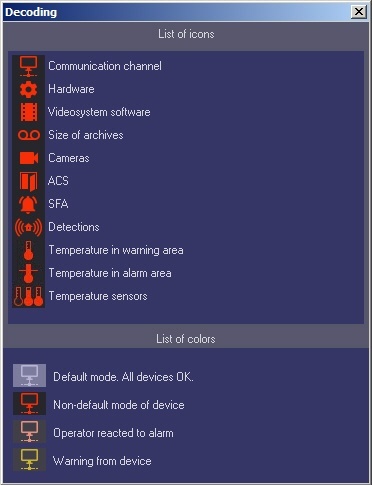

For information on what an icon means, click the  button  (Symbol Meanings). A dialog box with information opens.

If Owners panel is enabled (see Administrator's Guide, the Configuring the ATM Monitoring object section), then only objects that belong to a selected owner are displayed on the Control panel.
