Setting up the CARMEN-parking program module is done in the following way:

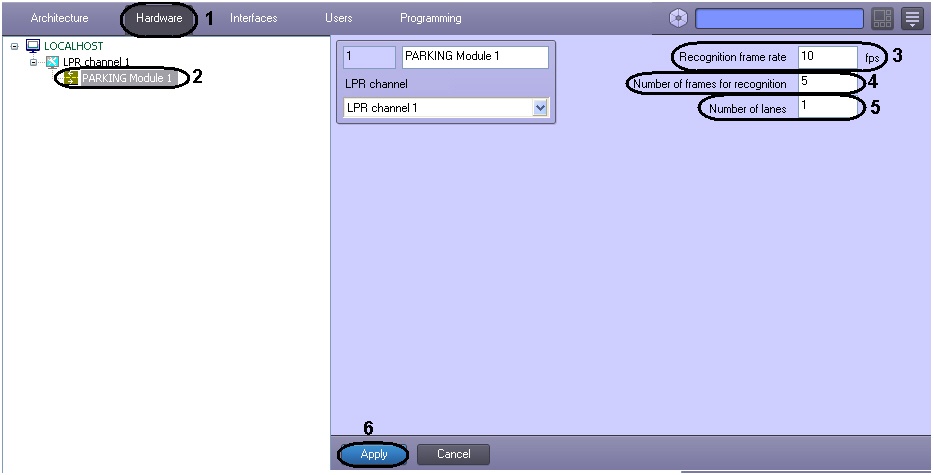

  1. Go to the Hardware tab in the System settings dialog window (1).
  2. In the objects tree on the Hardware tab select the CARMEN-parking object, corresponding to the set CARMEN-parking program module (2). The settings panel of the selected object will open on the right side of the window.
  3. In the Recording frame rate field enter the value of recording frame rate per second (3).
  4. Enter the value in the Number of frames for recognition field (4).
  5. Enter the value in the Number of lanes field (5).
  6. Click Apply to save the changes (6).

Setting up the CARMEN-parking program module is completed.
