There is possibility to set the permitted vehicle speed for displaying in the report concerning the recognized number.

For setting the permitted speed do the following:

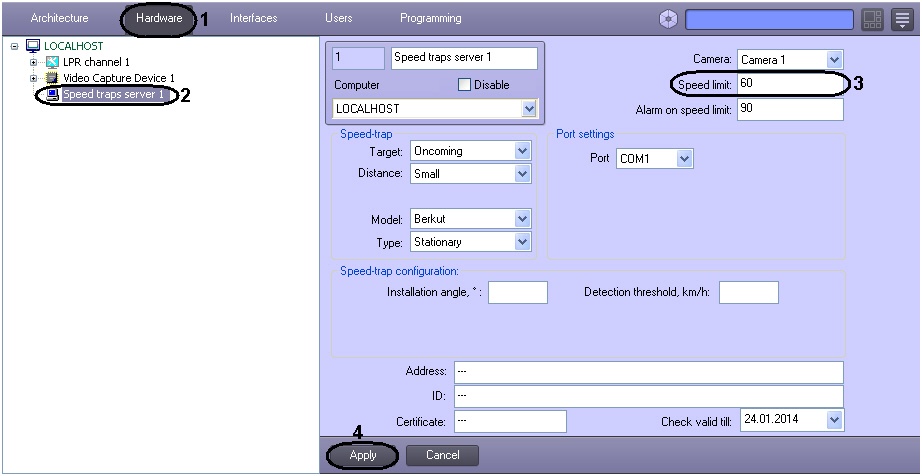

  1. Open the Hardware tab in the System Settings window (1).
  2. In the object tree on the left side of the Hardware tab, select the Speed-trap server object representing the Radar module to be set up. The settings panel of the selected object will open on the right side of the window.
  3. Enter the permitted vehicle speed that has to be displayed in the recognized number report in the Speed limit field. The parameter is given in km/h (3).
  4. Click Apply (4).

The permitted speed is now set up.
